US PRO 7174 Vauxhall fiat 1.3cdti timing tool kit astra  corsa punto doblo

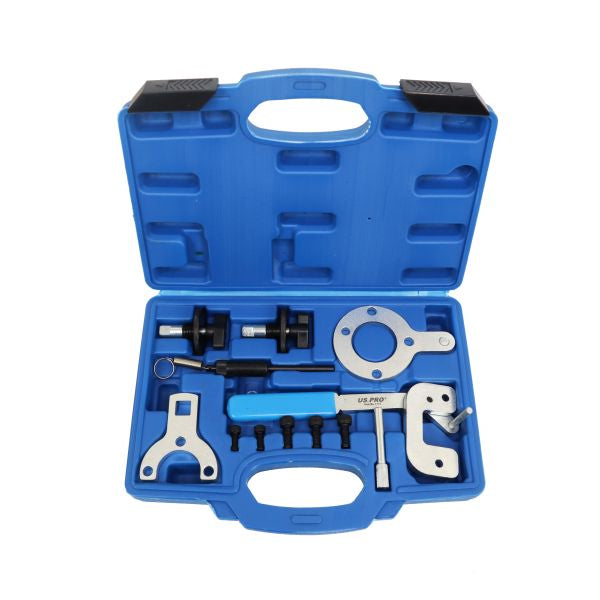

Timing tool set for locking and adjusting the engine timing. For 1.3 CDTi Multi-Jet diesel engines 2003 onwards.

Note: No instructions included. Intended for installation by a suitably trained person.

Applications:

Vauxhall / Opel: Agila 1.3 CDTi Z13DT 2003-2008, Astra H 1.3 CDTi Z13DTH 2004-2009, Corsa C 1.3 CDTi Z13DT 2003-2007, Corsa D 1.3 CDTi Z13DTH & Z13DTJ 2006-2009, Combo C 1.3 CDTi Z13DT 2003-2009, Meriva 1.3 CDTi Z13DT & Z13DTJ 2004-2009, Tigra B 1.3 CDTi Z13DT 2004-2009.

Fiat: Doblo 1.3 JTD Multi-Jet 188A9.000 2004-2006, Doblo Cargo 1.3 JTD 188A9.000 2004-2006, Idea 1.3 JTD Multi-Jet 199A3.000 & 188A9.000 2004-2006, Panda 1.3 JTD Multi-Jet 169A1.000 & 188A8.000 2003-2009, Punto 1.3 JTD Multi-Jet 188A9.000 2003-2007.

Ford: KA 1.3 TDCi FD4

Suzuki: Ignis 1.3 CDTi Z13DT 2003-2009, Swift 1.3 CDTi Z13DT 2003-2010, Wagon 1.3 CDTi Z13DT 2003-2009.

OEM Tool References:

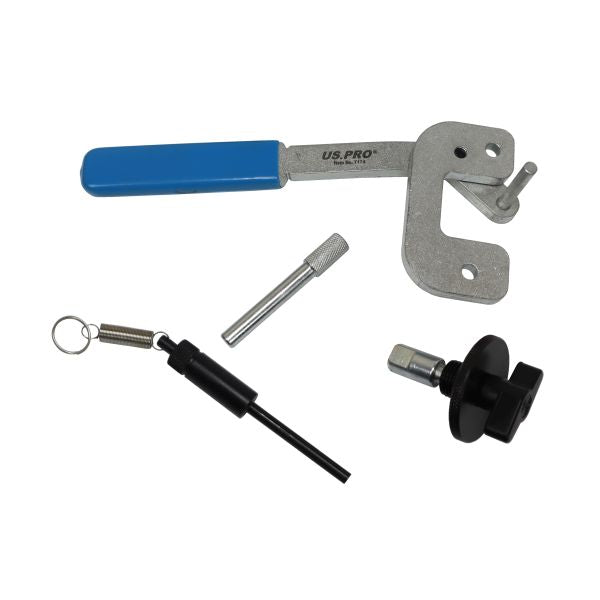

Counter-holding wrenches for crankshaft pulley, to be used as compatible for Fiat OEM 1871000200 - Ford OEM 303-1469 - Vauxhall / Opel OEM KM-662-C.

Crankshaft adjustment tool, to be used as compatible for Vauxhall / Opel OEM EN 46785, OEM KM 955 - Suzuki 09912-38300.

Camshaft adjustment tool, to be used as compatible for Fiat OEM 1871000900, 1860985000 - Ford OEM 303-1472 - Vauxhall / Opel OEM EN 4781 - Suzuki OEM 09917-68610.

Chain clamp, to be used as compatible for Fiat OEM 1870900400.

Crankshaft locking tool, to be used as compatible for Fiat OEM 1870900300 - Ford OEM 303-1468.

Crankshaft adjustment tool, compatible for Fiat 8 mm.
