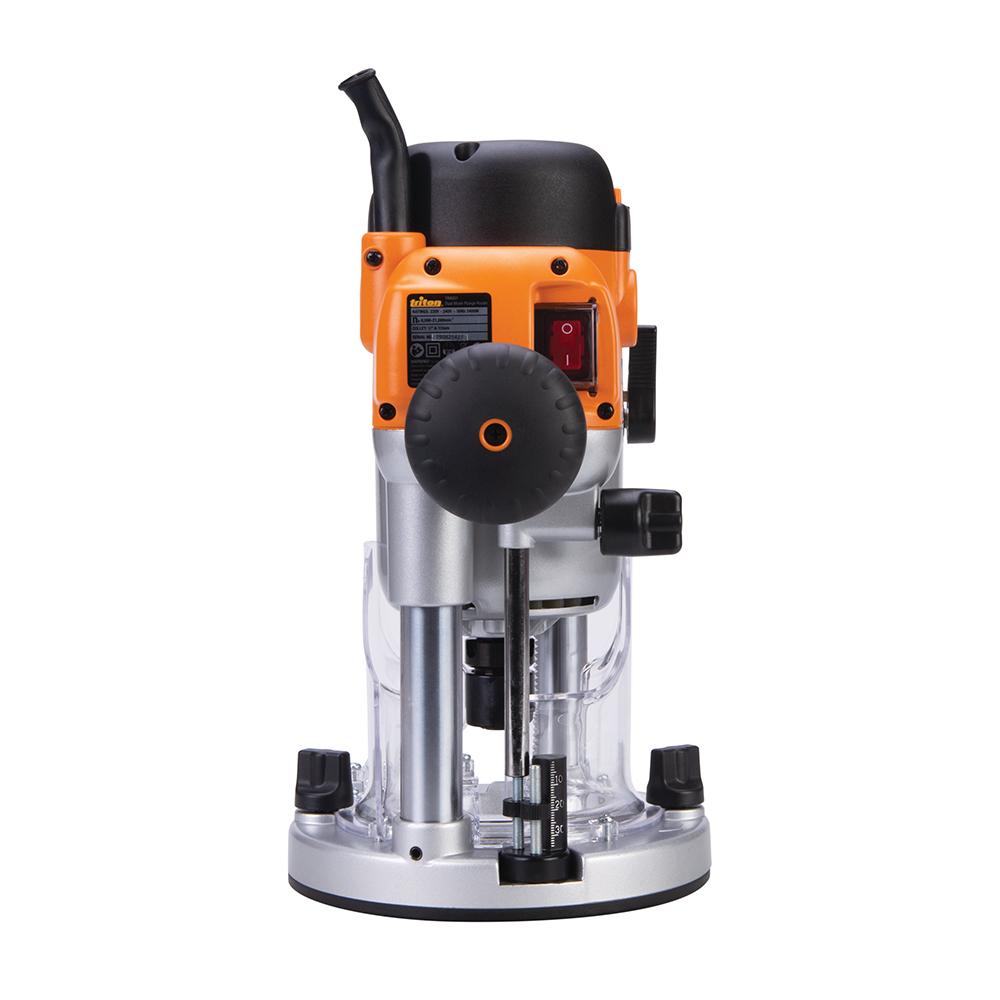

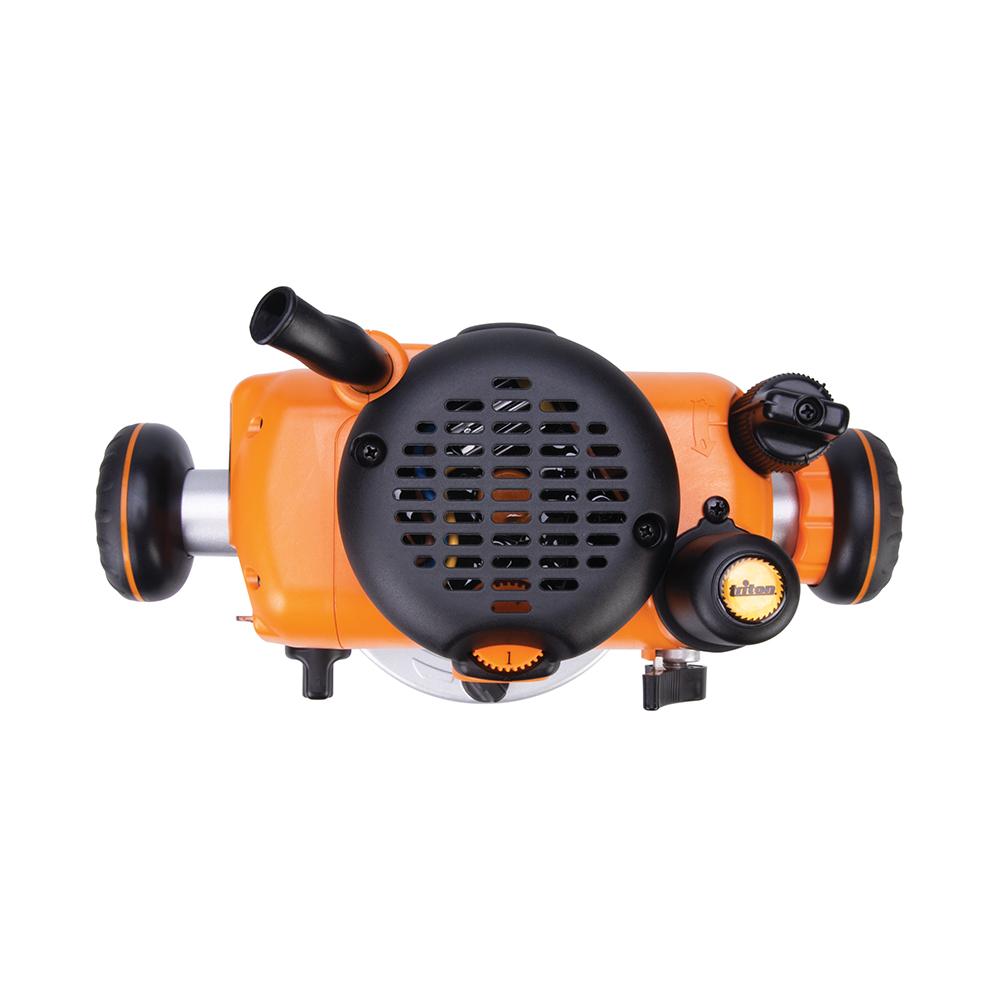

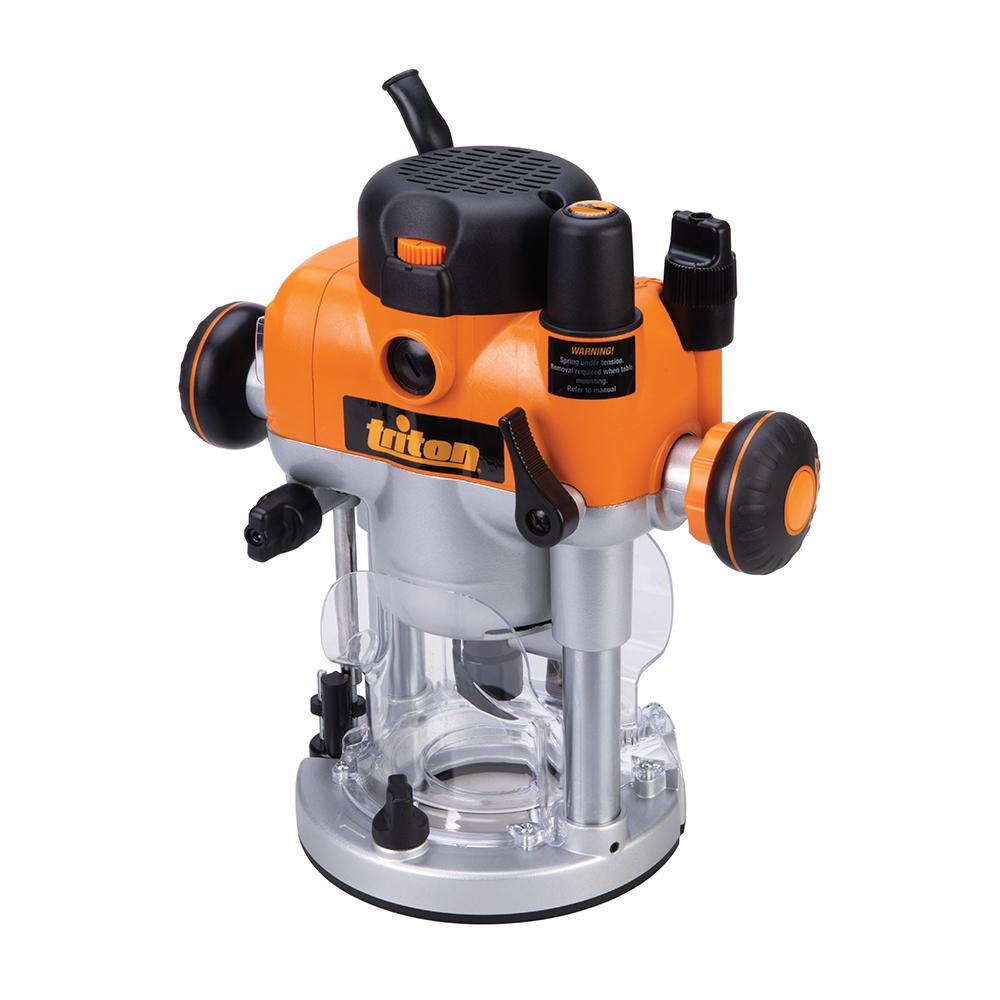

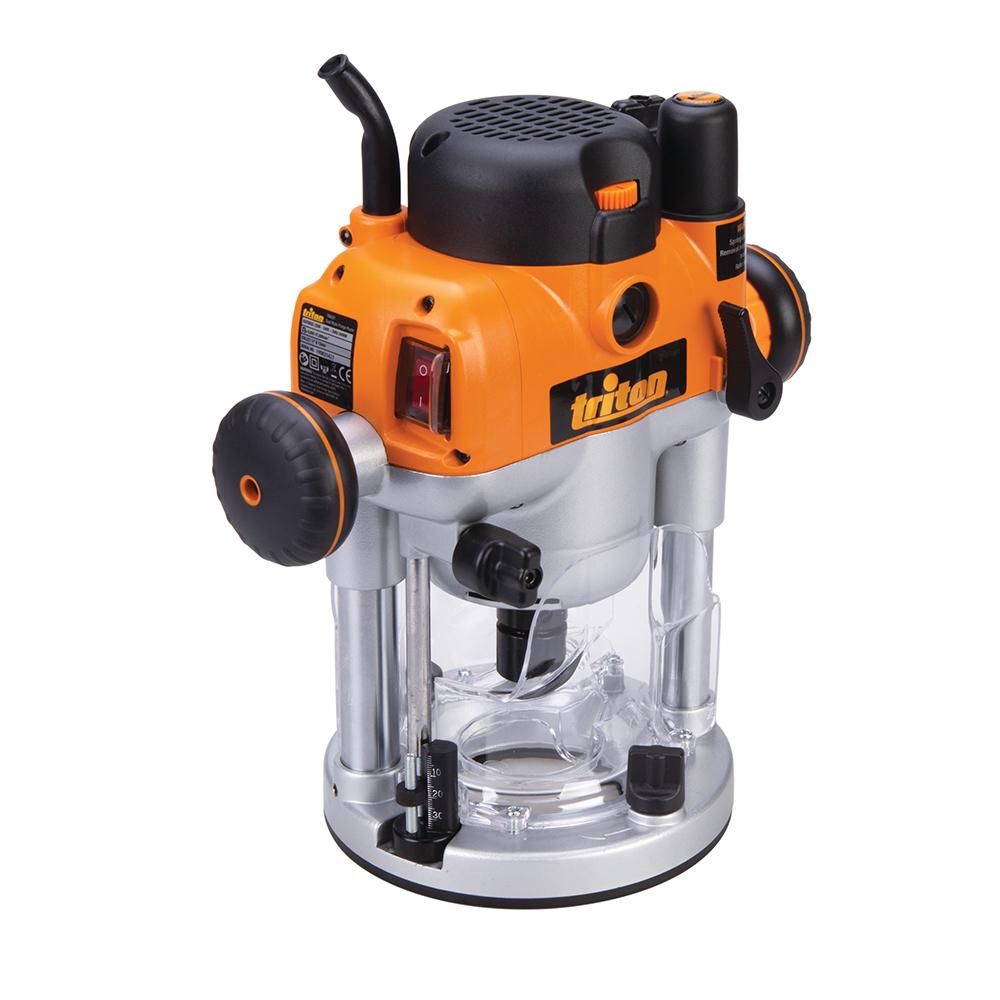

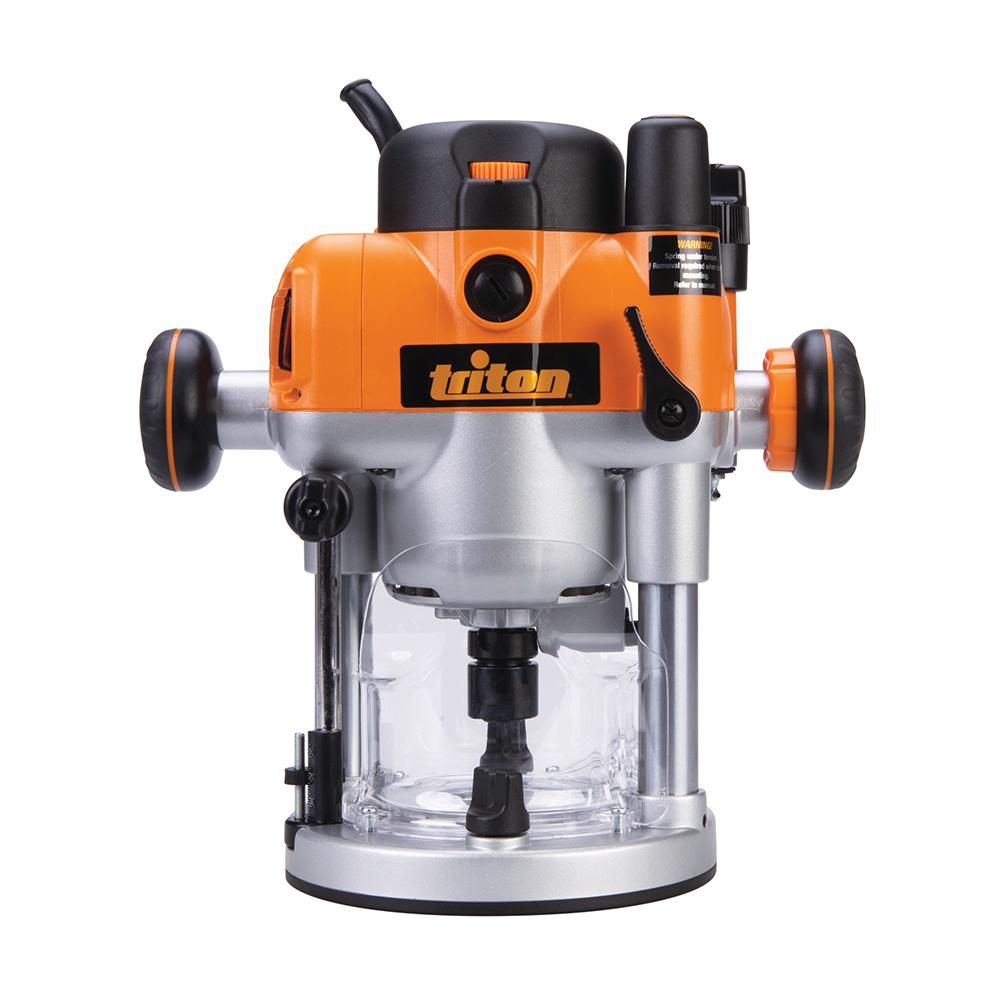

Triton Dual Mode Precision Plunge Router

Powerful 2400W / 3-1/4hp electronically controlled motor. Single spanner ‘above table’ cutter changing.

Automatic shaft lock and power lock-off during cutter change mode.

Fast plunge depth adjustment with winder handle and fine depth adjustment with micro winder.

Quick switching to conventional plunge mode. Removable plunge spring for easy lifting and adjustment. Effective dust port.

Plunge Router features

• 1/2” and 12mm collet for a greater range of bit fitment
• 2400W / 3-1/4hp motor provides enough power for even the toughest timbers
• Automatic spindle lock engages only when power switch cover is closed
• Soft start and variable speed provides the perfect speed for all cutter types
• Single button switches from plunge to fixed based router with rack and pinion adjustment
• Micro winder enables continuous fine depth adjustment through the full plunge range
• Rack and pinion height adjustment and table winder eliminates the need for expensive lifting mechanisms when used with router tables
• Electronic speed control ensures a fine finish on all materials
• Removable plunge spring for easy bit adjustment when table mounted
• 3-stage turret with direct reading scales for precise pre-set cut depths
• Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
• Multi-function fence provides optimum control for hand-held use and circle cutting
• Quick-fit pins for fast fitment and removal from the fence and RTA300 Router Table
• Side air vents reduce intake of dust into the motor casing when mounted upside-down in a router table
• Excellent dust extraction for a cleaner, safer working environment
• Easy access brushes allows the end user to change worn brushes
• Single wrench bit change through the base is achieved with the automatic spindle lock
• Safety Switch Shutter locks closed in bit-change mode to prevent router being switched on

Plunge Router Specifications

Plunge Router Manual

Manual of Triton Dual Mode Precision Plunge Router

Product video

 Warranty

3 years manufacturer warranty. Customers must register the product on the manufacturer website
