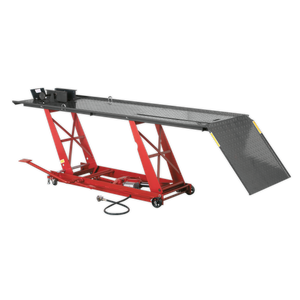

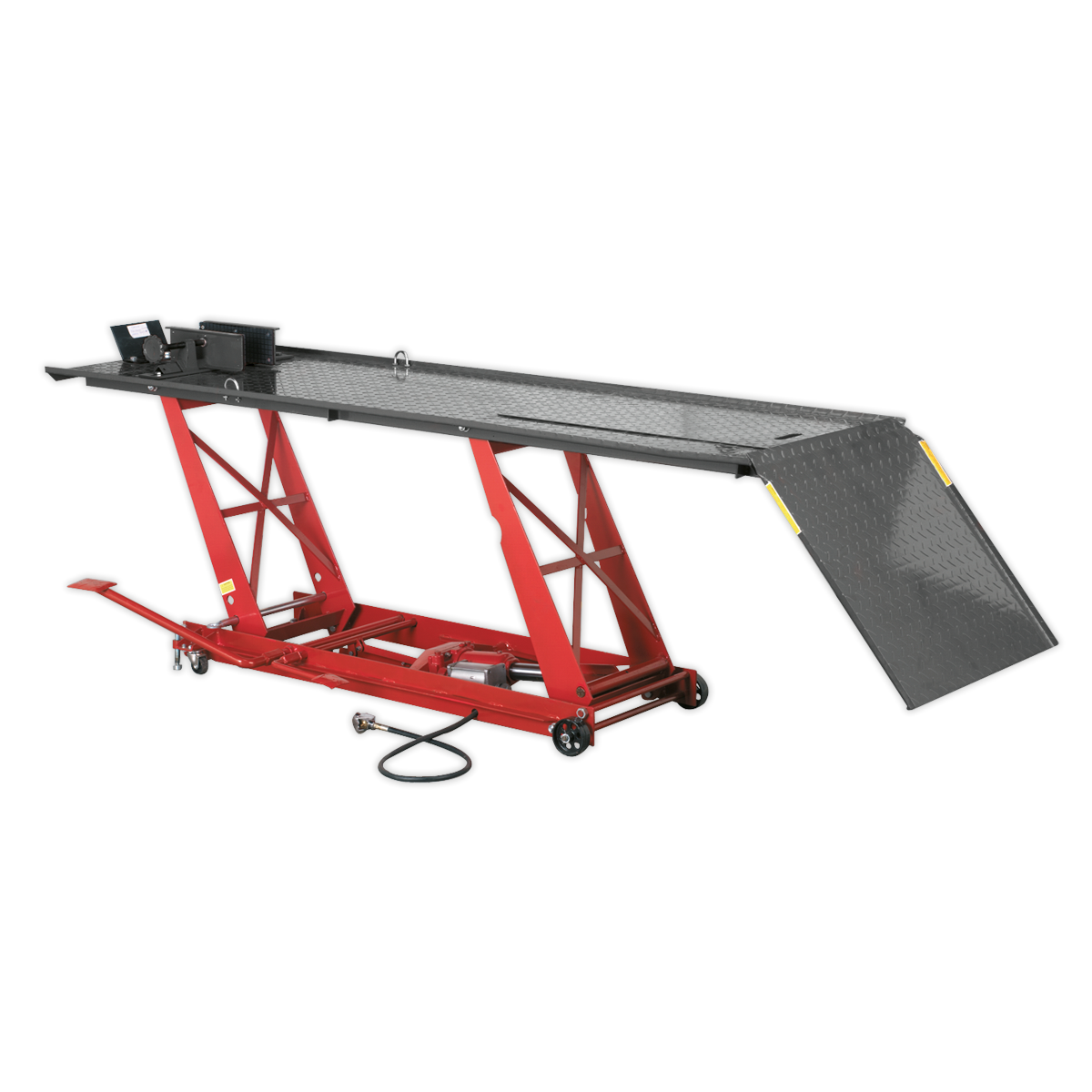

Sealey MC401A 454kg Heavy-duty Motorcycle Air and Hydraulic Operation Lift Table

All steel construction with heavy-duty foot-operated hydraulic pump and ram assembly. Safety table lock device to prevent accidental lowering.

Suitable for use with centre stand motorcycles or with paddock stand

Sealey quality Motorlift table

Features

• All steel construction with air pump or foot pedal for manual operation.
• Integral hydraulic pump and air motor assembly.
• Fitted with platform safety lock device to fix platform at two working heights of 490 and 710mm to prevent accidental lowering.
• Front-wheel clamp for stability and sliding panel for easy rear wheel removal.
• Support platform fitted with full width loading ramp.
• Base assembly fitted with transport wheels and lock-downs to prevent lift from moving during use.
• Suitable for use with centre stand motorcycles or with paddock stand.
• Air Consumption: 7.06cfm.

Specifications

• Capacity: 454kg
• Minimum/Maximum Height: 190/710mm
• Platform Width/Length: 690/2200mm
• Air Supply: Min. 100psi/Max. 120psi

Product manual

Product manual of Sealey MC401A 454kg Motorcycle Air and Hydraulic Operation Lift Table

Part list of Sealey MC401A 454kg Motorcycle Air and Hydraulic Operation Lift Table
