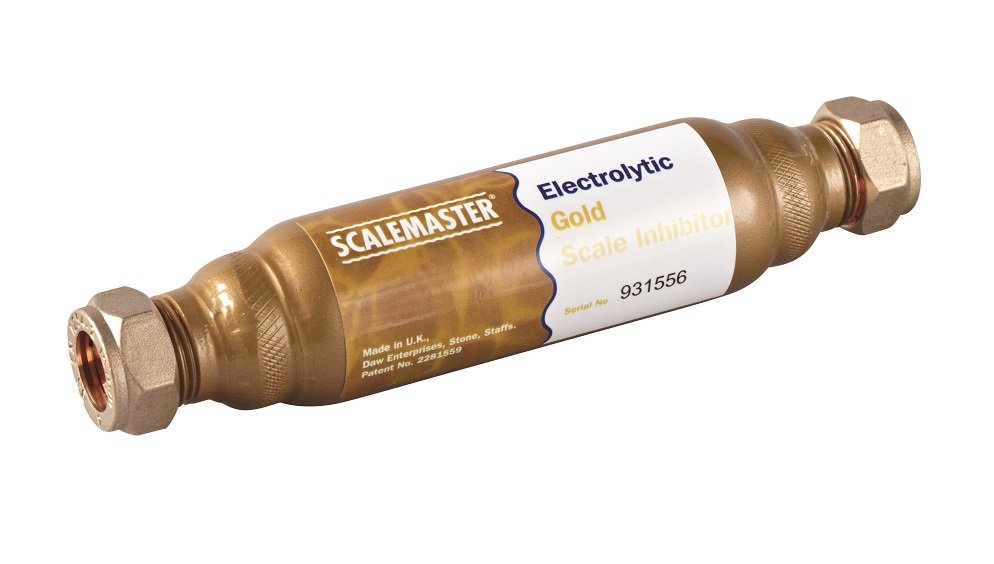

Scalemaster 22mm Electrolytic Gold Scale Inhibitor 401065

Scalemaster 22mm Electrolytic Gold Scale Inhibitor - Metal Body, Compression Fit - for Whole House Protection.

Scalemaster® Electrolytic Limescale Inhibitors prevent limescale build-up by adding a small trace of zinc to the water. This has the effect of suppressing limescale formation by bonding to the dissolved calcium ions which then require more energy for precipitation. Any micro-crystals which form are then washed away by the water flow rather than adhering to heat-exchanger surfaces.

Laboratory research has shown a relationship between the amount of zinc dissolved and the reduction in limescale precipitation achieved, Scalemaster® Electrolytic Limescale Inhibitors incorporate patented technology to boost the supply of zinc In independent tests, application of the Scalemaster® electrolytic technology typically extends boiler life by 50% in hard water area by preventing limescale precipitation.

Note: Electrolytic Limescale Inhibitors are recommended for whole house applications.

Installation Instructions

Electrolytic Scale Inhibitors are suitable for individual appliance & whole house protection.

• For whole house protection, plumb into incoming cold water mains supply pipe just after the stopcock.
• Operating temperature 4°C - 40°C
• Do not allow to freeze
• Maximum operating pressure 8 bar
• Do not solder

Installation should be made to comply with all local byelaws and building regulations.

Additional Information: Using a kettle - Electrolytic effect changes hard water scale into tiny particles. The particles pass out of hot water heating systems in the flow of water called off for use. However to prevent an accumulation of scale particles in a kettle pour away any unused hot water and refill with cold.

Product features:

• Scalemaster Patented Technology
• WRAS Approved Product
• Whole House Protection
• Manufactured in the UK
• Slip Couplings for easy fit
• Earth bonding not required
• Needs no chemicals or power
• Easily installed
• No moving parts, no maintenance required
• Whole house protection

Product manual

Scalemaster 22mm Electrolytic Gold Scale Inhibitor 401065 product specifications

Warranty

The product Scalemaster 22mm Electrolytic Gold Scale Inhibitor 401065 comes with 36 Months manufacturer warranty.
