Product description

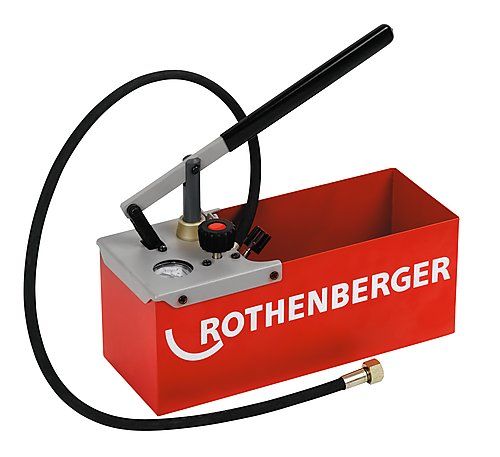

Rothenberger TP25 Pressure testing pump
Testing pump TP25 is a precision tool for testing installation tightness using water or oil as testing liquid, with maximum possible testing pressure of 25 bar.

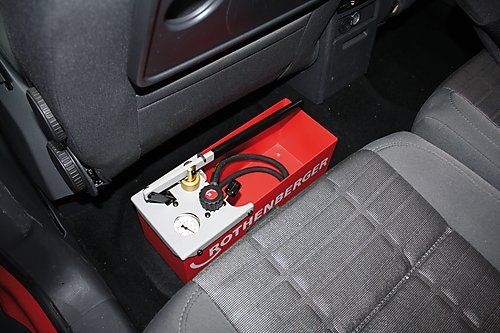

The compact design of the TP 25 offers the installer a handy solution for pressure testing in confined spaces.
The pressure build-up can be precisely readjusted with the double valve system.
Thanks to the weather-resistant and cold-resistant DURAMANT coating, an extremely long service life is guaranteed.
Reliable and precise measurement results: the dual valve system (twin-valve) allows self-testing of the pump, as well as a precise fine adjustment of the pressure Testing hose with steel mesh prevents measuring errors caused by expansion of the hose during operation Weather and cold-resistant steel container with DURAMANT coating
Test pump TP25 product features
- Double shut-off and purge valve system, to ease test
- pressure adjustment.
- Combined ball head and monoblock shut-off valve
- system reducing risk of leaks in the system.
- Distortion proof wear resistant brass.
- Knock resistant weather and cold-proof galvanised steel tank protected with Duramant® epoxy coating.
- Pressure gauges with readily available calibration certificates
Specifications
- Name: Testing pump TP25
- Code: 6.0250
- Dimensions: 380 x 215 x 156 mm
- Weight: 4,6 kg
- Tank volume: 7 l.
- Piston volume: 16 ml
- Outlet connection: R 1/2”
- Testing fluid: Water, oil
- Maximum temperature: 50º C - 120ºF
- Maximum pressure: 25 bar
Product manual
Product manual of Rothenberger TP25 Pressure testing pump
Warranty
1 year manufacturer warranty
Rothenberger TP25 Pressure testing pump
Testing pump TP25 is a precision tool for testing installation tightness using water or oil as testing liquid, with maximum possible testing pressure of 25 bar.
The compact design of the TP 25 offers the installer a handy solution for pressure testing in confined spaces.
The pressure build-up can be precisely readjusted with the double valve system.
Thanks to the weather-resistant and cold-resistant DURAMANT coating, an extremely long service life is guaranteed.
Reliable and precise measurement results: the dual valve system (twin-valve) allows self-testing of the pump, as well as a precise fine adjustment of the pressure Testing hose with steel mesh prevents measuring errors caused by expansion of the hose during operation Weather and cold-resistant steel container with DURAMANT coating
Test pump TP25 product features
- Double shut-off and purge valve system, to ease test
- pressure adjustment.
- Combined ball head and monoblock shut-off valve
- system reducing risk of leaks in the system.
- Distortion proof wear resistant brass.
- Knock resistant weather and cold-proof galvanised steel tank protected with Duramant® epoxy coating.
- Pressure gauges with readily available calibration certificates
Specifications
- Name: Testing pump TP25
- Code: 6.0250
- Dimensions: 380 x 215 x 156 mm
- Weight: 4,6 kg
- Tank volume: 7 l.
- Piston volume: 16 ml
- Outlet connection: R 1/2”
- Testing fluid: Water, oil
- Maximum temperature: 50º C - 120ºF
- Maximum pressure: 25 bar
Product manual
Product manual of Rothenberger TP25 Pressure testing pump
Warranty
1 year manufacturer warranty
Customer Reviews
This is a well engineered, easy to use and compact pressure tester. It's ideal for testing sealed heating systems and any hydraulic pressure up to 25 bar.

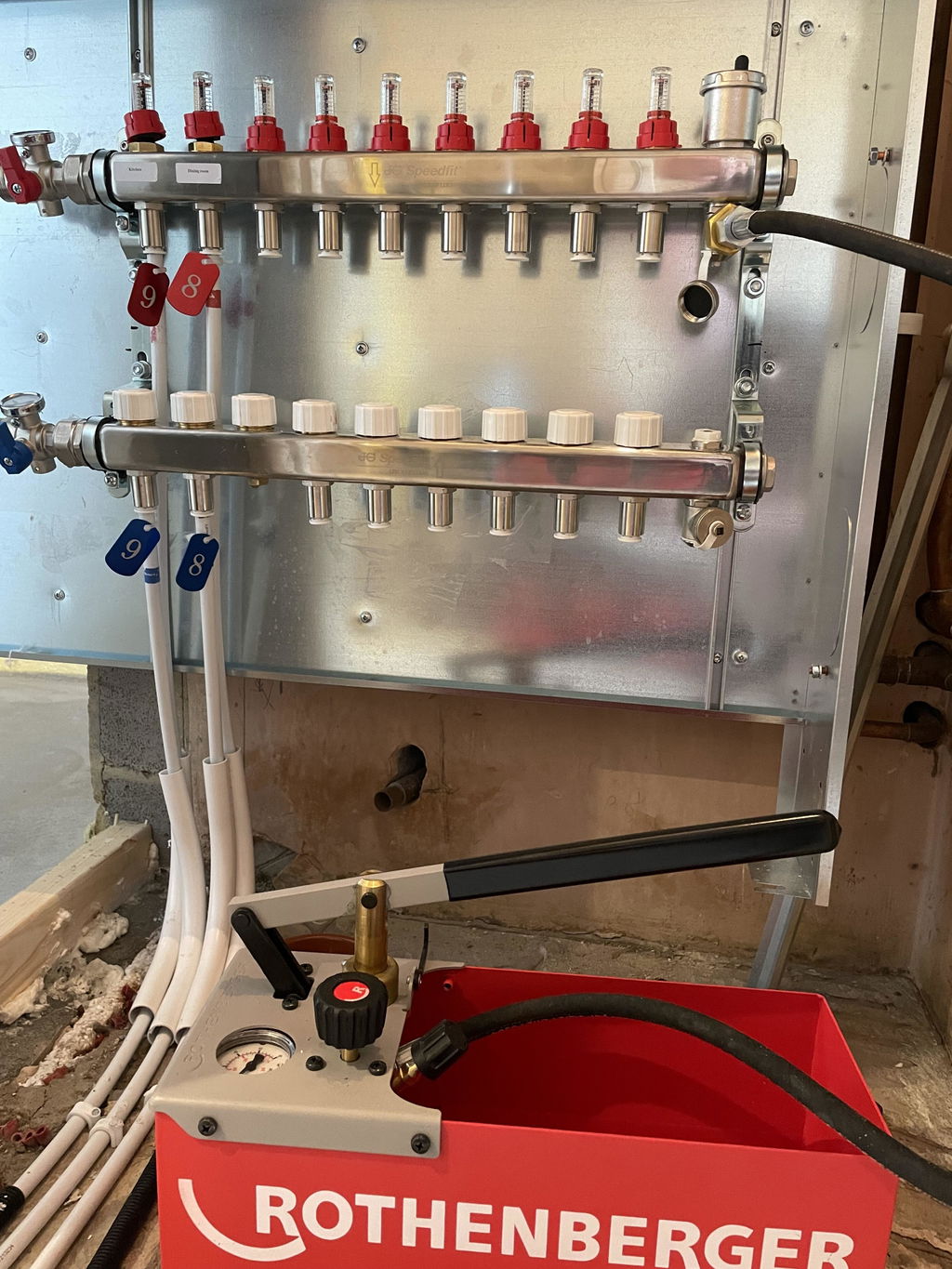

It has a 1/2" union so for connecting to most underfloor heating manifolds it requires a 1/2" to 3/4" adapter. The size also makes it easier to use in tight spaces.
