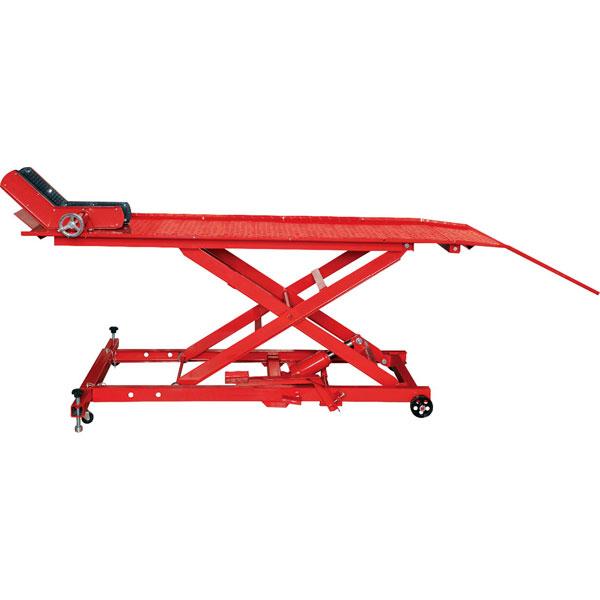

Motorcycle Lift Table - Heavy Duty Lifting Range 185 to 850mm Hydraulic Operation using 1 Foot to Lift and the other Foot to Release Safety Valve to Prevent Overload Guard Plate above release pedal to prevent unintentional lowering Set Spindle to prevent unintentional slow lowering

• Min. height: 185mm
• Max. height: 850mm
• Table size: 2200 x 660mm
• Ramp size: 690 x 660mm

Features
1. Air or Hydraulic Powered Mechanism
2. Removable plate for increased access, such as rear wheel removal
3. Adjustable foot for increased safety and stability
4. Safety set increases safety against accidental descent of table

Operation
1. Ensure that the table is at the minimum height, and that the ramp is in place.
2. Lock off the release valve, steadily pump the foot pedal until the table reaches a
required height, or using the air pump to lifting the motorcycle lift. Connect the hose to the air feeder directly before operate the air pump, then press valve to rise the table, and loosen the valve to stop.
3. Lock the safety set at the required height. Then repair the motorcycle.
4. After repairing, remove the safety set.
5. Steadily pump the foot pedal, Let the table lower
6. Remove the motorcycle from its stand and wheel it off the back of the table via the

450Kg 210 MM 760 MM

MOTORCYCLE LIFT - HEAVY DUTY CT1562

Product manual of Neilsen CT1562 motorcycle lift table
