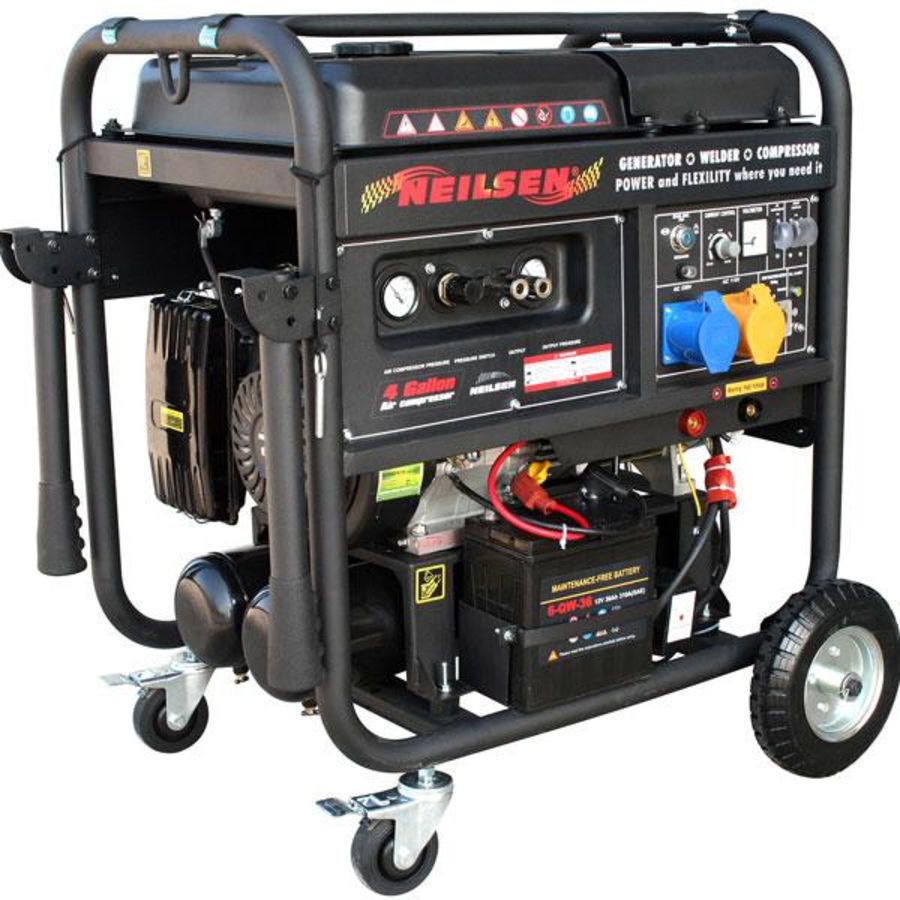

Neilsen CT4539 3 In 1 Machine Generator & Welder & Compressor

The Neilsen CT4539 is a useful machine professional,  it is a 3 in 1 Generator & Welder & Compressor.

Neilsen CT4539 Specifications:

WELDER

• Max rated welding current : 180A
• Max load voltage: 27.2V
• Working Frequency : 50Hz
• Duty cycle for Max load : 60 percent
• Electrode Diameter : 2.6 - 4.0mm

COMPRESSOR

• Voltage : 230V
• Frequency : 50Hz
• Max. pressure : 8 bar
• Rated power : 1.1KW

ENGINE

• Model: JF420
• Type : 4-Stroke OHV Forced Air cooled
• Displacement : 420ML
• Max. Output : 15HP
• Rated speed : 3000rpm
• Fuel : Unleaded Gasoline
• Fuel Tank Capacity : 25L
• Continuous operating time : 8 hours
• Ignition system : T.C.I.
• Starting system : Electric start
• Operating Noise Level / 7M : 97dB/A


Product manual of 3 in 1 Neilsen CT4539 Welder, generator and compressor
