Nordisk Rat blocker TX11 250 (10 inch) PVC Ultra RAT92025

TX11 is a rat blocker produced in acid-resistant stainless steel, developed for installation in sewer pipes of different dimensions and materials. With over 300,000 units installed in Europe, the TX11 is a thoroughly tested solution that is both VA and WRC approved.
Regardless of the model, the TX11 series ensures effective and long-lasting protection against sewer rats – without the use of poison. Installation is quick and simple from the ground, without the need for excavation. The robust design has been thoroughly tested in thousands of European sewer systems and is suitable for both new installation and retrofitting.

• Effective rat blocker with dual gate system with sharp teeth
• Install directly from ground level
• Long-lasting quality – produced in Denmark in acid-resistant stainless steel

Applications:

Can be used for all types of piping systems in clay, concrete, and plastic (PP/PVC)

• Internal pipe diameter: 217-222 mm
• Minimum manhole diameter: 315 mm
• Minimum slope in the manhole: 12 ‰
• Maximum slope in the manhole: 25 ‰
• Minimum distance between the flap and the pipe invert: 8 mm
• Maximum distance between the flap and the pipe invert: 16 mm

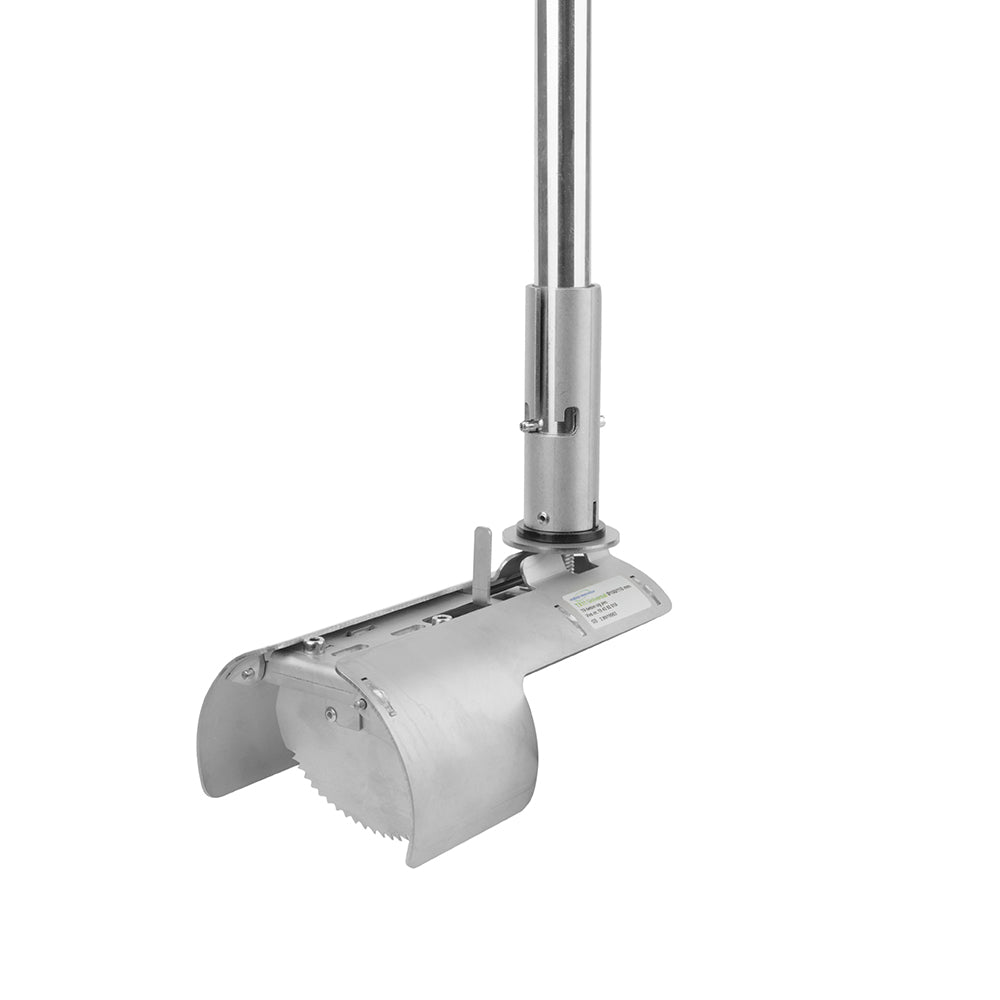

Installation poles with extension sections allow the TX11 to be installed into almost any depth chamber from ground level. There is no silicone or securing cable required for installation. Full installation details and chamber warning label are included within the box.

Accesories:

• Installation Pole 1m
• Extension Pole 1m

Product Video

Instructions

Click here Nordisk Rat Blocker TX11 Installation manual
