Product description

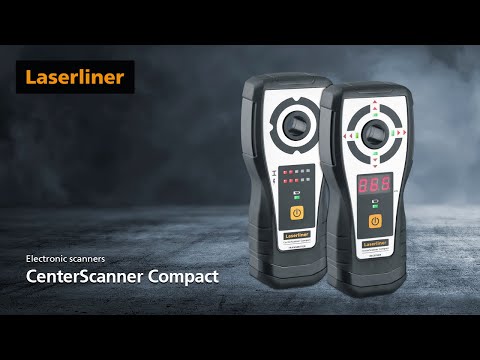

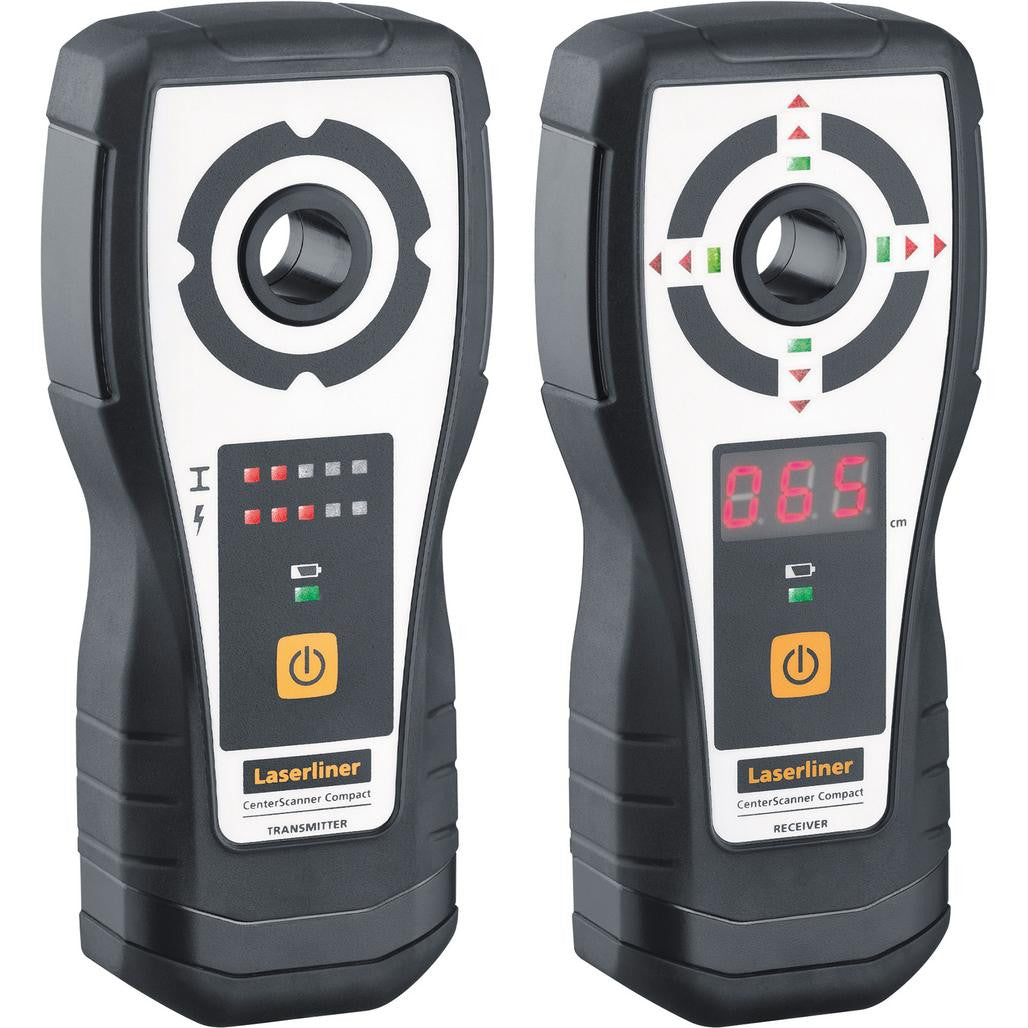

Laserliner 075.400A CenterScanner Compact Drilling Guide Device (32088)
Professional drill guide system for precise wall and ceiling drilling up to 120 cm depth. Laserliner CenterScanner Compact combines a transmitter and receiver with LED location indicators and switchable acoustic signals for safe, accurate channel alignment. LCD display determines drilling depth to 150 cm. Ergonomic design fits comfortably in hand. Detects foreign objects with visual and acoustic warning. Includes receiver, adhesive kit, four sliding pads, batteries, and carrying case for complete setup.
CenterScanner Compact Drilling Guide product features:
- Easy and safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm
- Precise location of the entry and exit points using LED indicators
- Highly accessible marking aids in the sender and receiver provide the centring
- Determination of the required drilling depth up to 150 cm
- Optical and acoustic warning when foreign objects detected
- The sender and receiver fit comfortably in the hand thanks to their ergonomic design
- Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries & a carrying case
| Operating instructions | Yes |
| Drill channel alignment | Yes |
| Wall thickness display | Yes |
| Measuring depth display | Yes |
| Warning for 230 V wires | Yes |
| Metal detection | Yes |
| Accuracy | typically 3% of measured depth |
| Detection Range AC | 2 cm |
| Power Supply | RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA) |
| Operating Time | RECV: approx. 20 hours / TX: approx. 12 hours |
| Storage Conditions | -20°C ... 60°C, max. 85% rH humidity, non-condensing |
| Dimensions (W x H x D) | 77 mm x 179 mm x 31 mm |
| Weight | (RECV and TX inc. Batteries) |
Laserliner 075.400A CenterScanner Compact Drilling Guide Device (32088)
Professional drill guide system for precise wall and ceiling drilling up to 120 cm depth. Laserliner CenterScanner Compact combines a transmitter and receiver with LED location indicators and switchable acoustic signals for safe, accurate channel alignment. LCD display determines drilling depth to 150 cm. Ergonomic design fits comfortably in hand. Detects foreign objects with visual and acoustic warning. Includes receiver, adhesive kit, four sliding pads, batteries, and carrying case for complete setup.
CenterScanner Compact Drilling Guide product features:
- Easy and safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm
- Precise location of the entry and exit points using LED indicators
- Highly accessible marking aids in the sender and receiver provide the centring
- Determination of the required drilling depth up to 150 cm
- Optical and acoustic warning when foreign objects detected
- The sender and receiver fit comfortably in the hand thanks to their ergonomic design
- Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries & a carrying case
| Operating instructions | Yes |
| Drill channel alignment | Yes |
| Wall thickness display | Yes |
| Measuring depth display | Yes |
| Warning for 230 V wires | Yes |
| Metal detection | Yes |
| Accuracy | typically 3% of measured depth |
| Detection Range AC | 2 cm |
| Power Supply | RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA) |
| Operating Time | RECV: approx. 20 hours / TX: approx. 12 hours |
| Storage Conditions | -20°C ... 60°C, max. 85% rH humidity, non-condensing |
| Dimensions (W x H x D) | 77 mm x 179 mm x 31 mm |
| Weight | (RECV and TX inc. Batteries) |
Laserliner 075.400A CenterScanner Compact Drilling Guide Device (32088)
