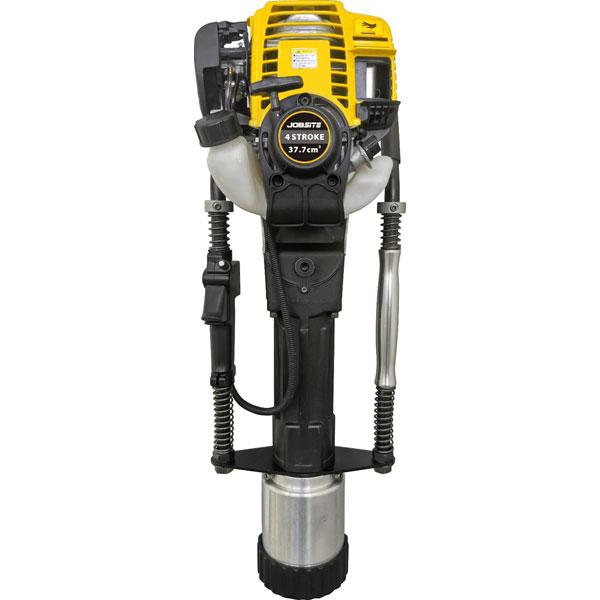

Jobsite 4343 Gasoline Pile Driver 37.7cc 4-stroke 120mm

It can be used for outside piling operation in farms, orchard fences or barriers. It is a handheld gasoline pile driver which boasts light weight and low discharge capacity. The product conforms to design of man-machine engineering, reduces working strength of the operator to the greatest extent, and boasts simple and comfortable operation. The operator can achieve 360° all-around operation. It can regulate impact energy and impact frequency and be applied to a variety of piles ≥30mm or ≤120mm in diameter. Advantage: Save the trouble of using heavy machines such as generator, air compressor, and trucking-lorry. The operating handle of the machine is rubber and plastic sponge handle which can greatly reduce the recoil force of the machine. It’s installed with two-way Damping Spring which makes the user more comfortable.

• Applications: Fencing, Star pickets, Posts, Stakes,
• Pipe driving Engine Type: 4-stroke, single-cylinder, aircooled
• Max. post diameter: 120mm
• Displacement: 37.7m³
• Fuel tank capacity: 0.65L
• Max. torque and speed: 1.65N.m /5500/min
• Max. engine power: 1.0kw/6500/min
• Max. engine speed:8500/min
• Idling speed: 3000/min
• Fuel Consumption Rate: =480g/kw.h
• Impact Frequency: 700~1350/min
• Impact Energy: 20~55J
• Fuel(Pure gasoline): 86 octane unleaded gasoline or higher
• Starter system: Hand pull start
• Accessories: Piling sleeve 69mm,100mm,120mm each one piece

Product manual of Gasoline Pile Driver 37.7cc 4-stroke 120mm
