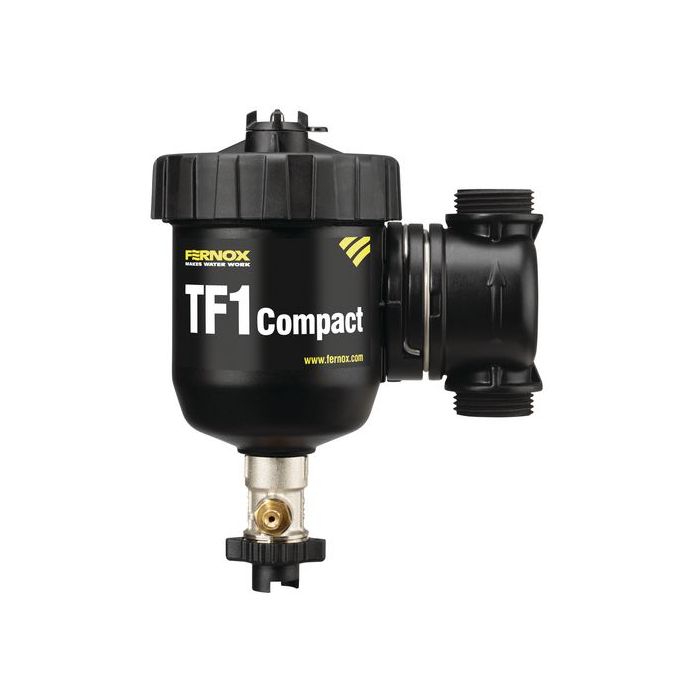

Fernox TF1 Compact Magnetic Filter 22mm, 62131

The Fernox TF1 Compact Magnetic Filter is a sophisticated in-line filtration system engineered for heating and cooling applications where space is at a premium. Combining hydrocyclonic separation with premium neodymium magnet technology, it captures both ferrous and non-ferrous contaminants with up to 100% efficiency. The glass-reinforced polymer construction resists hydrolysis, strain, and abrasion whilst remaining compatible with glycols and system additives. Its innovative 24-orientation inlet/outlet mechanism allows installation on vertical or horizontal pipework with minimal pressure loss. Isolation valves and drain access enable straightforward maintenance without system shutdown. Rated for 50 L/min flow and 100°C operation, the TF1 Compact protects boilers from corrosion debris whilst maintaining consistent system performance.

Product features of Fernox compact TF1 22mm filter:

• Precision engineered, hydrocyclonic and magnetic in-line system filter to remove magnetic and non-magnetic contaminants from system water
• Ideal for use in small, restricted spaces and access areas
• Easy to fit – multiple orientation capability on vertical and horizontal pipework

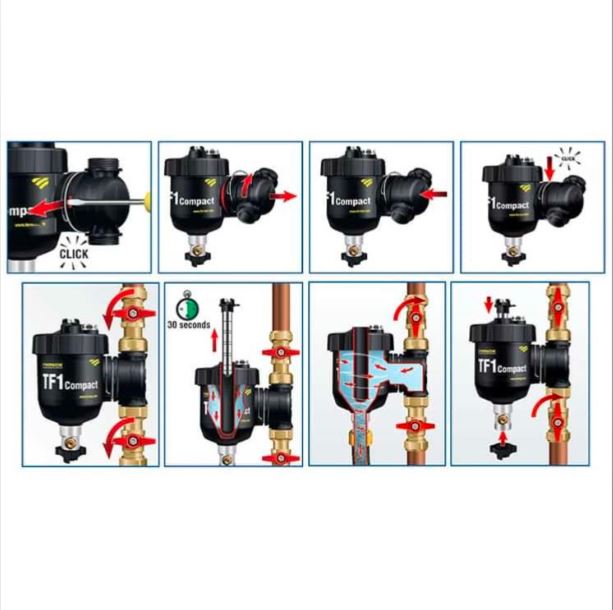

• Fast and mess-free cleaning via the drain valve – no need to dismantle the unit
• Easy to use, system can be left running normally during cleaning
• Suitable for installation on vertical and horizontal pipework
