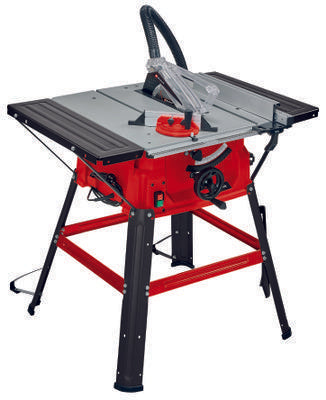

Einhell 4340490 Table Saw TC-TS 2025/2 U Max 2000 W

The Einhell 4340490 Table Saw TC-TS 2025/2 U is a high-performance tool designed for ambitious DIY enthusiasts. Its powerful motor allows for precise cutting of solid wood, fiberboard, and other similar materials.

Maximizing precision and ease, experience the convenience of a 2in1 saw blade adjustment that allows effortless adjustment of both height and angle with just one hand.

The enhanced parallel guide simplifies achieving precise longitudinal cuts, and the cross stop and adjustable saw blade are ideal for making mitre cuts. The table extensions also increase the surface area.

The dust extraction system at the housing and saw blade cover effectively cleans the surrounding air, ensuring a cleaner work environment.

Einhell table saw Features

Table width extension left and right for wide workpieces
Improved, stable parallel stop for exact cuts

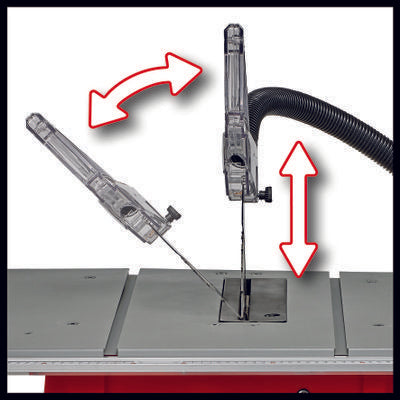

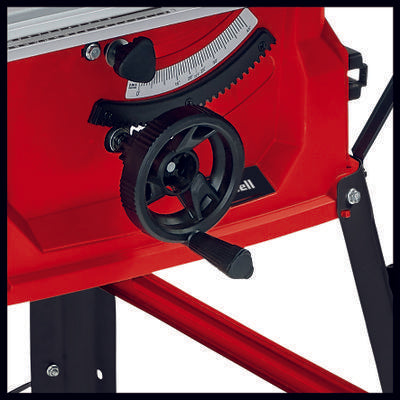

2 in 1 saw blade adjustment (height and angle with one hand)
Cross stop with angle scale (+/- 60°) for simple mitre cuts

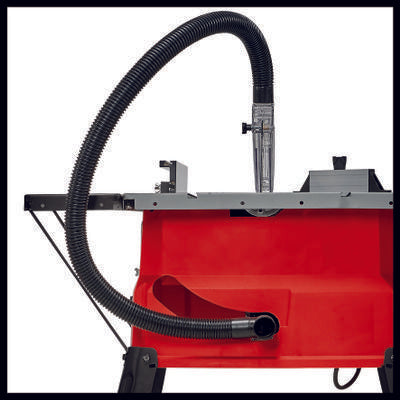

Chip extractor connection at the housing and the saw blade cover
Includes base frame for pleasant working height at 850 mm

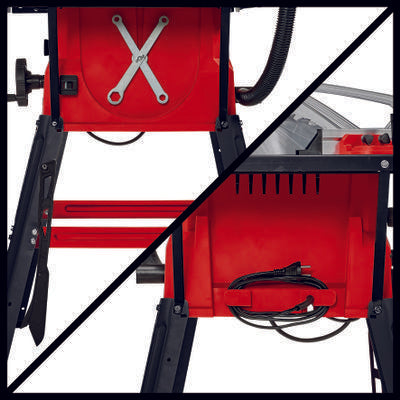

Holder at the housing to wrap the power cord

Einhell table saw Specifications

Mains supply	220-240 V \| 50 Hz
Power	1800 W
Max. power (S6 \| S6%)	2000 W \| 25 %
Idle speed	5000 min^-1
Saw blade	250 mm x 30 mm
Number of saw teeth	24 Pieces
Swiveling range of saw blade	45 °
Max. cutting height at 45°	65 mm
Max. cutting height at 90°	85 mm
Height adjustment continuous	0-85 mm
Diameter of suction adapter	36 mm
Working height	850 mm
Size of working table	563 mm x 583 mm
Table broadening left	583 mm x 165 mm
Table broadening right	583 mm x 165 mm

Einhell table saw product manual & documents

Product manual of Einhell Table Saw TC-TS 2025/2 U Max 2000 W

Product sheet of Einhell Table Saw TC-TS 2025/2 U Max 2000 W

Product part list of Einhell Table Saw TC-TS 2025/2 U Max 2000 W

Warranty

24 months manufacturer warranty.
