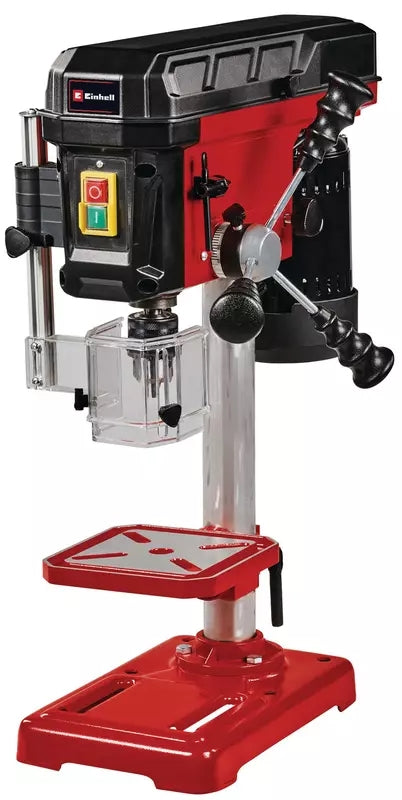

Einhell Bench Drill TC-BD 450

The Einhell bench drill TC-BD 450 is a practical, precise machine for special tasks: Due to the extra-large projection of 104 mm, large workpieces made of wood or metal can be reliably provided with pinpoint holes. With 450W power and 5-step speed adjustment from 600 to 2650 rpm, material-appropriate and precise drilling is possible. The bench drill can be used at very low and very high speeds and is excellently suited for hard materials e.g. metal and soft material e.g. wood. Exact drill holes possible thanks to adjustable depth stop. Maximum drilling depth of 50 mm. The bench drill has a robust sprocket chuck and B16 socket, which allows the use of Morse taper drills and common bits with diameters of 1.5 to 13 mm. The ball-bearing boring spindle ensures long-lasting and easy operation. The bench drill can be varied by continuously height-adjustable drill table. In addition, the drilling table can be rotated up to 90° and tilted up to 45°. The rubberised, three-armed rotating handle proves itself due to the favourable lever effect at exact contact pressure without the expenditure of force. The foldable chip guard and zero-voltage on/off switch prevent the machine from unintentionally startup after power failure.

•  5 speed settings to suit all materials

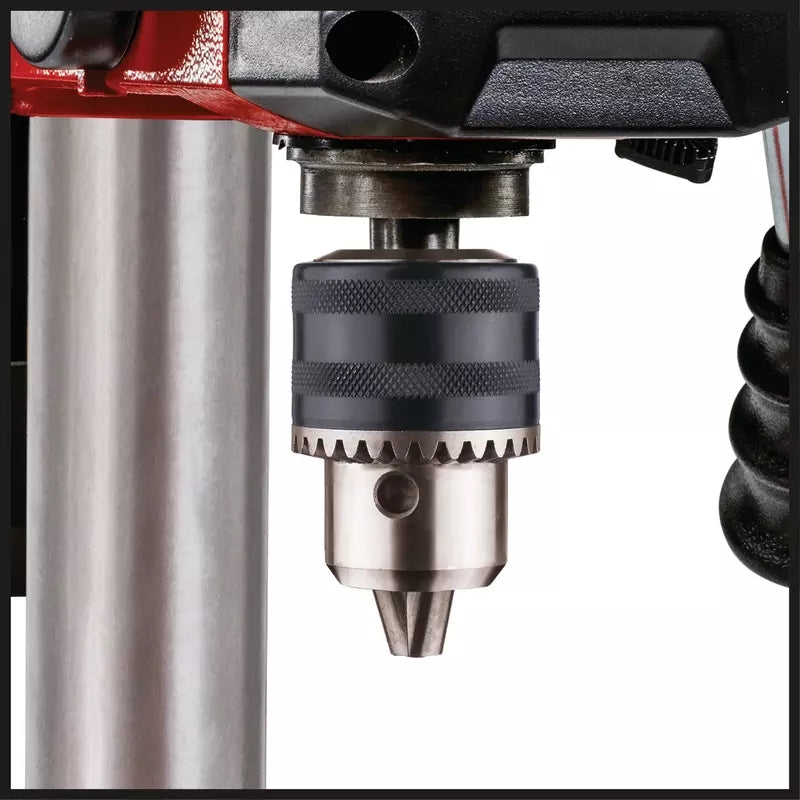

• For most common drill bit sizes thanks to robust ring gear chuck

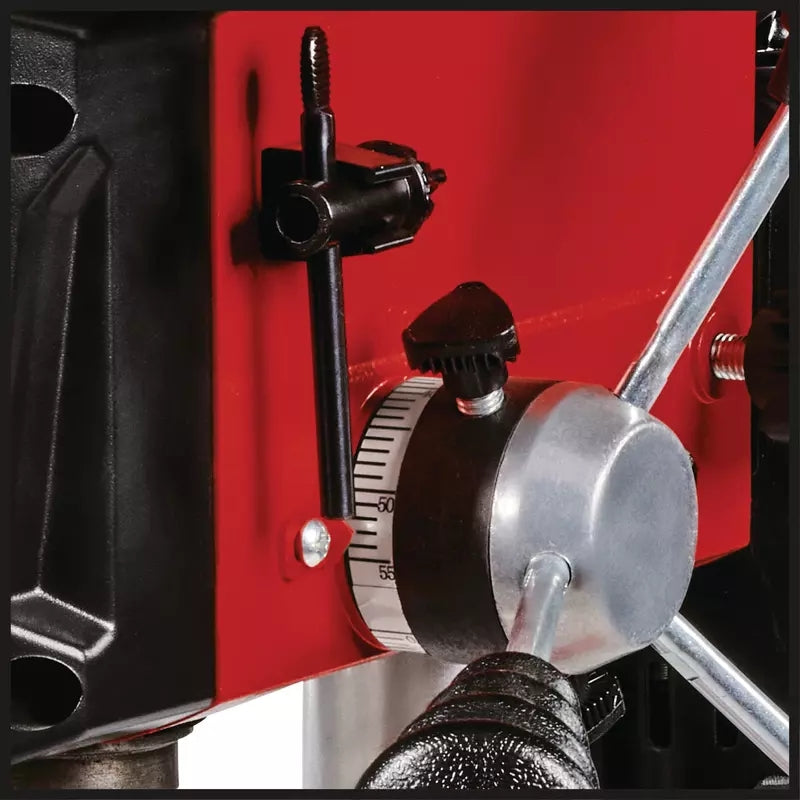

• Fast and precise drilling using the adjustable depth stop

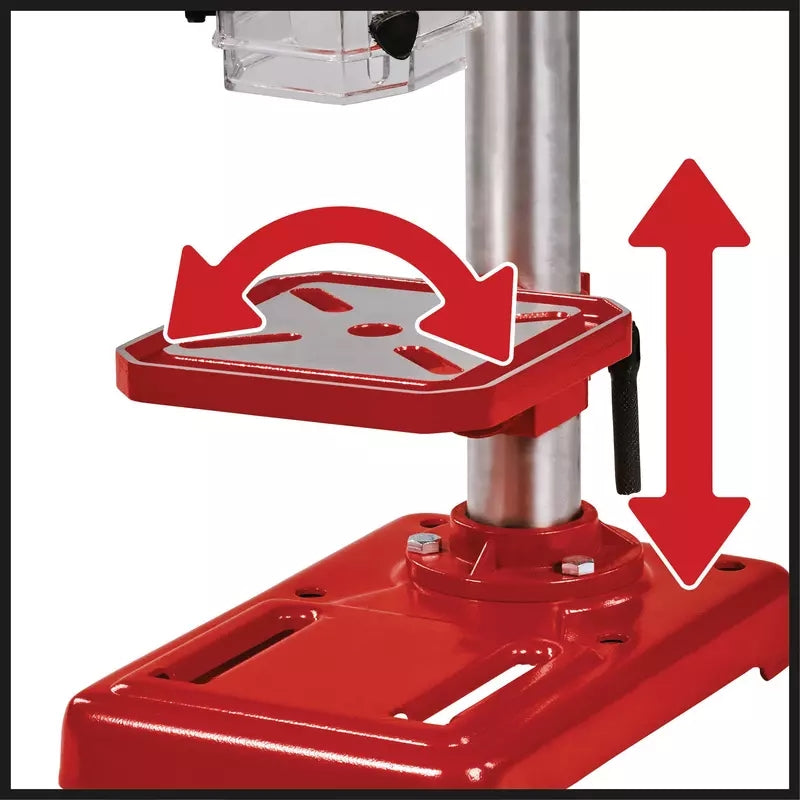

• Infinitely adjustable height of the drill table for variability
• The drill table can also be rotated and tilted
• Rubberized, three-arm capstan for exact application of pressure
• Safe operation thanks to a folding chip guard
• ON/OFF switch with zero-voltage release
• Drilling spindle with ball bearings for long-lasting and easy use

Technical Data

• Mains supply 230-240 V | 50 Hz
• Power 300 W
• Max. power (S6 | S6%) 450 W | 20 %
• Spindle speed 600 - 2650 min^-1
• Number of speed steps 5 settings
• Drill table tiltable -45 ° - +45 °
• Drill chuck mount B16
• Drill diameter 1.5 - 13 mm
• Throat 104 mm
• Max. drilling depth 50 mm
