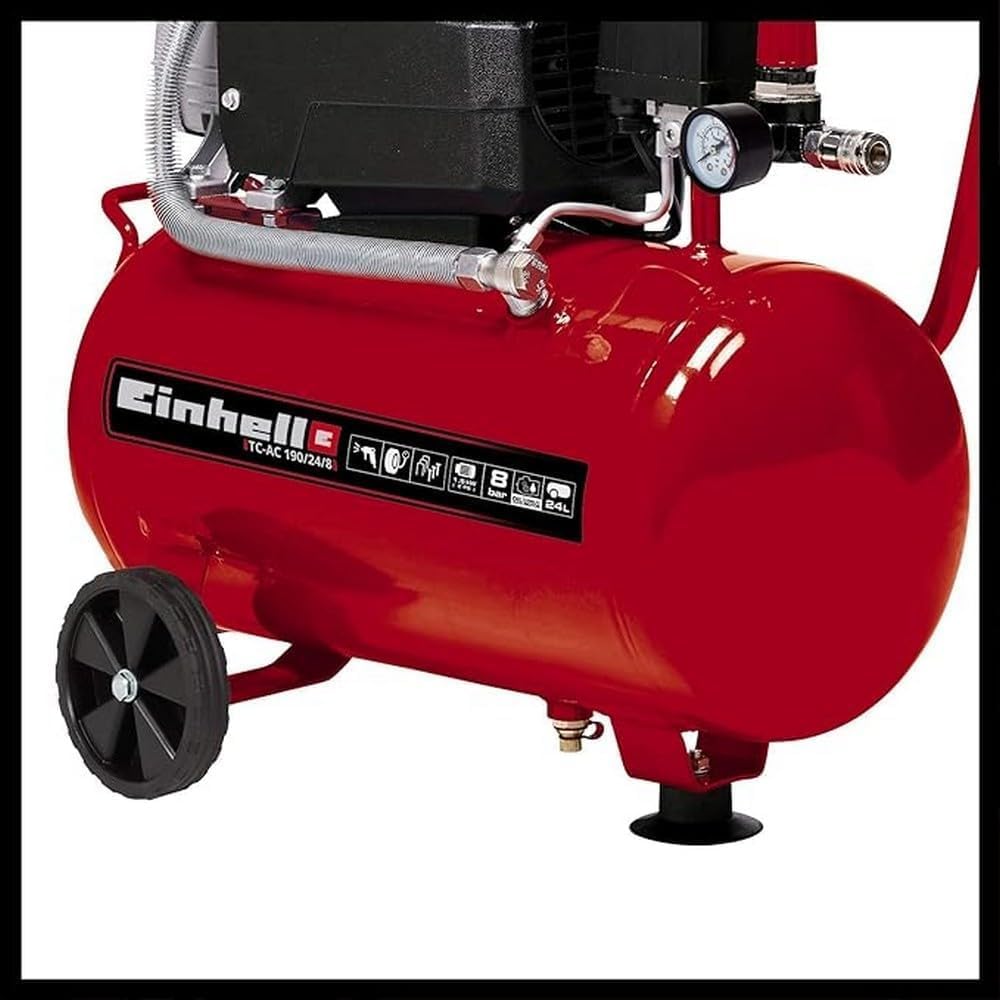

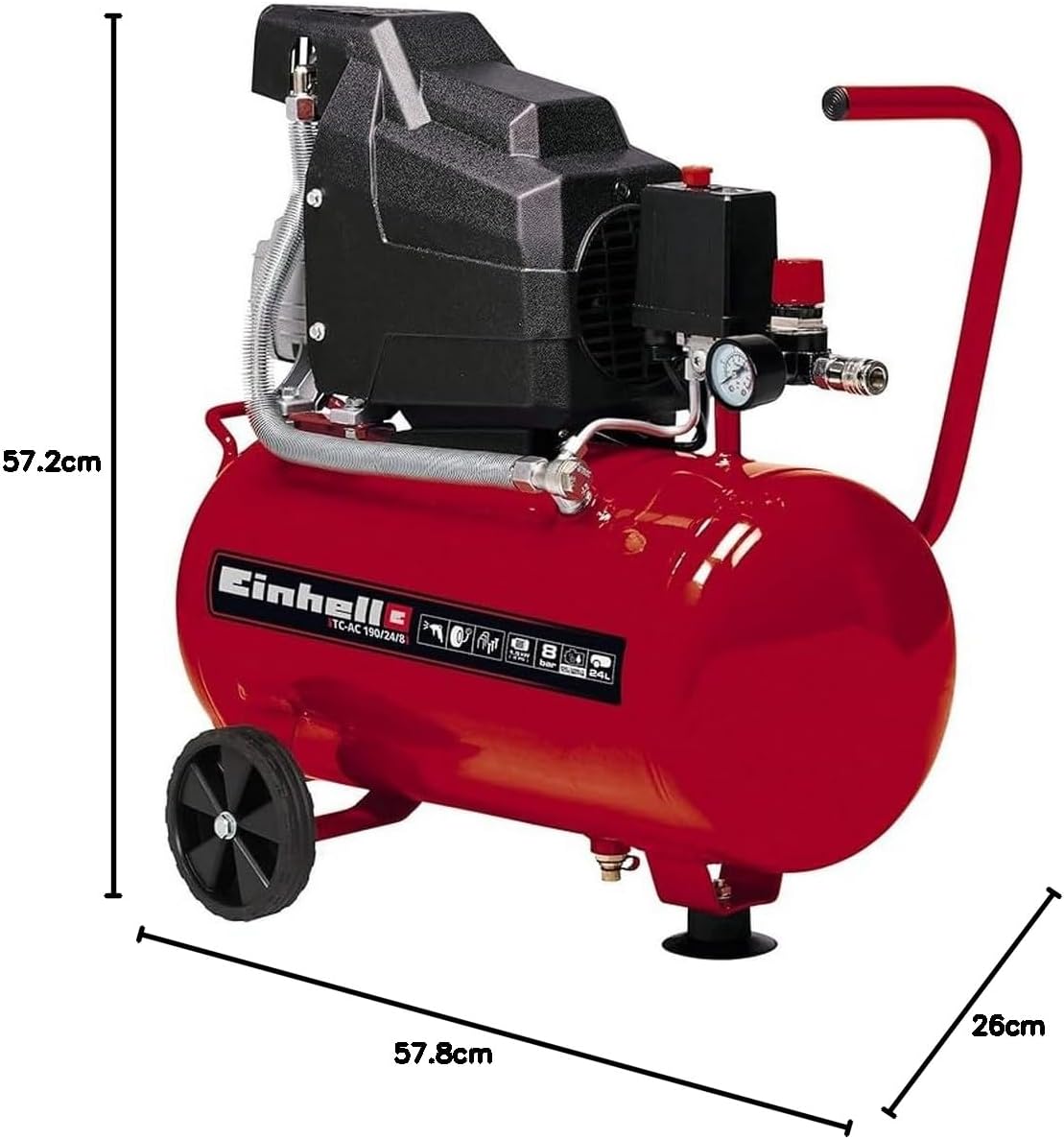

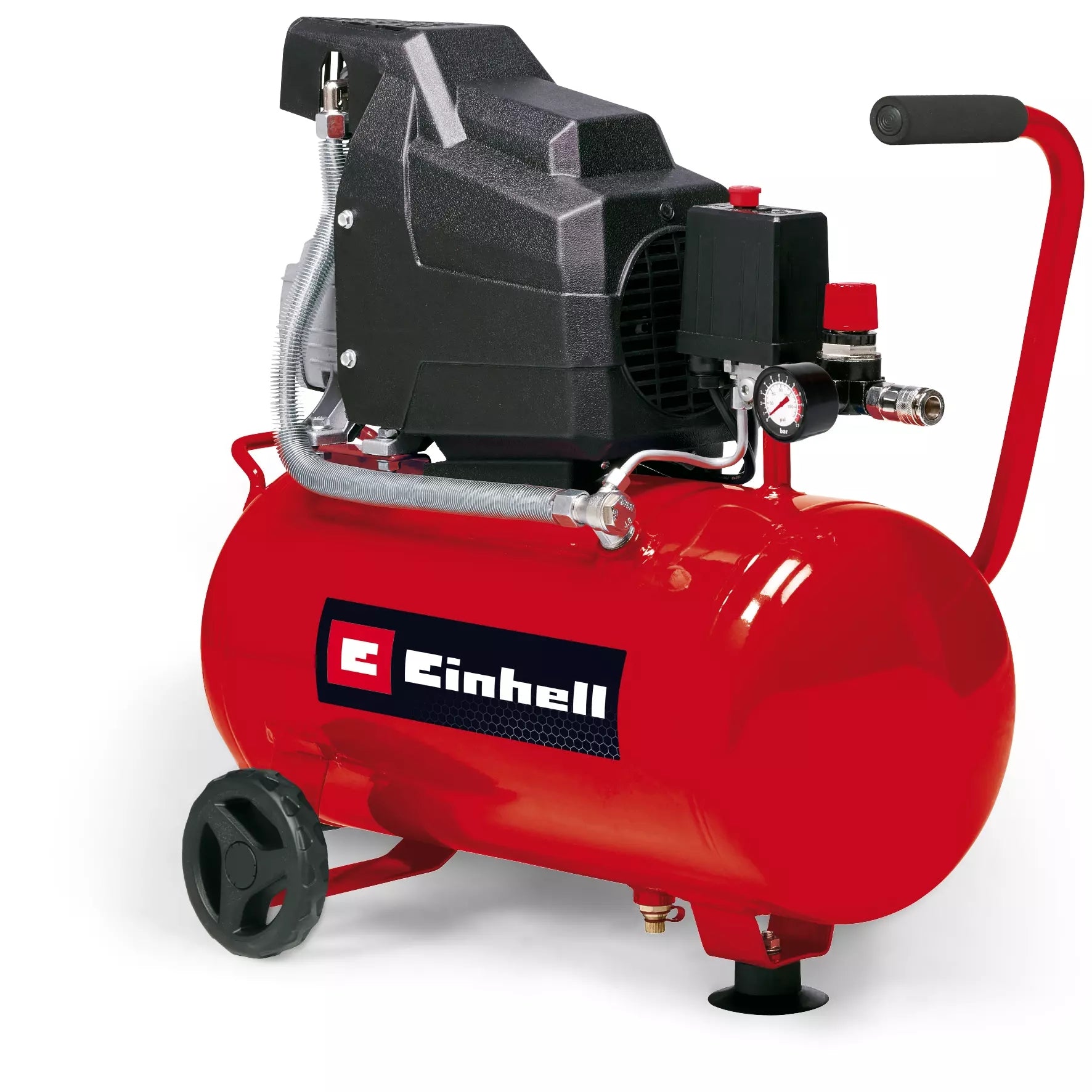

Einhell Air Compressor TC-AC 190/24/8 - 4007325

The TC-AC 190/24/8 is a versatile compressor, which is doing a good job at a lot of works with compressed air due to its compact measures and 8 bar working pressure. The regulated working pressure can be set precisely with the pressure reducer, and is displayed on the pressure gauge. Via quick connect, various compressed-air tools can be operated quickly and without tools.

• Oil lubrication contributes to long life
• The 24l tank has sufficient air reserves
• Applications up to 8 bar can be set using the pressure reducer

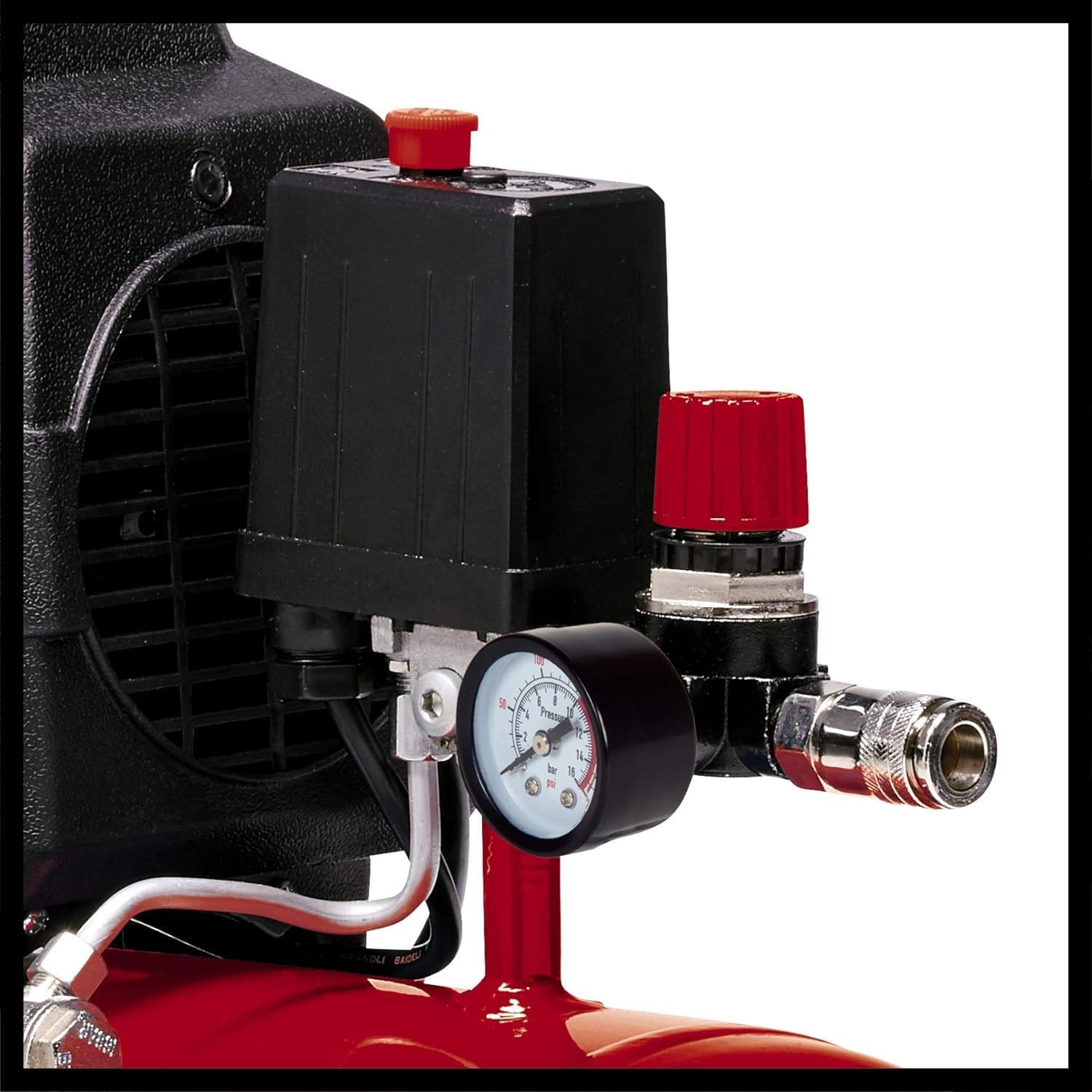

• Pressure gauge & quick-release coupling for regulated pressure

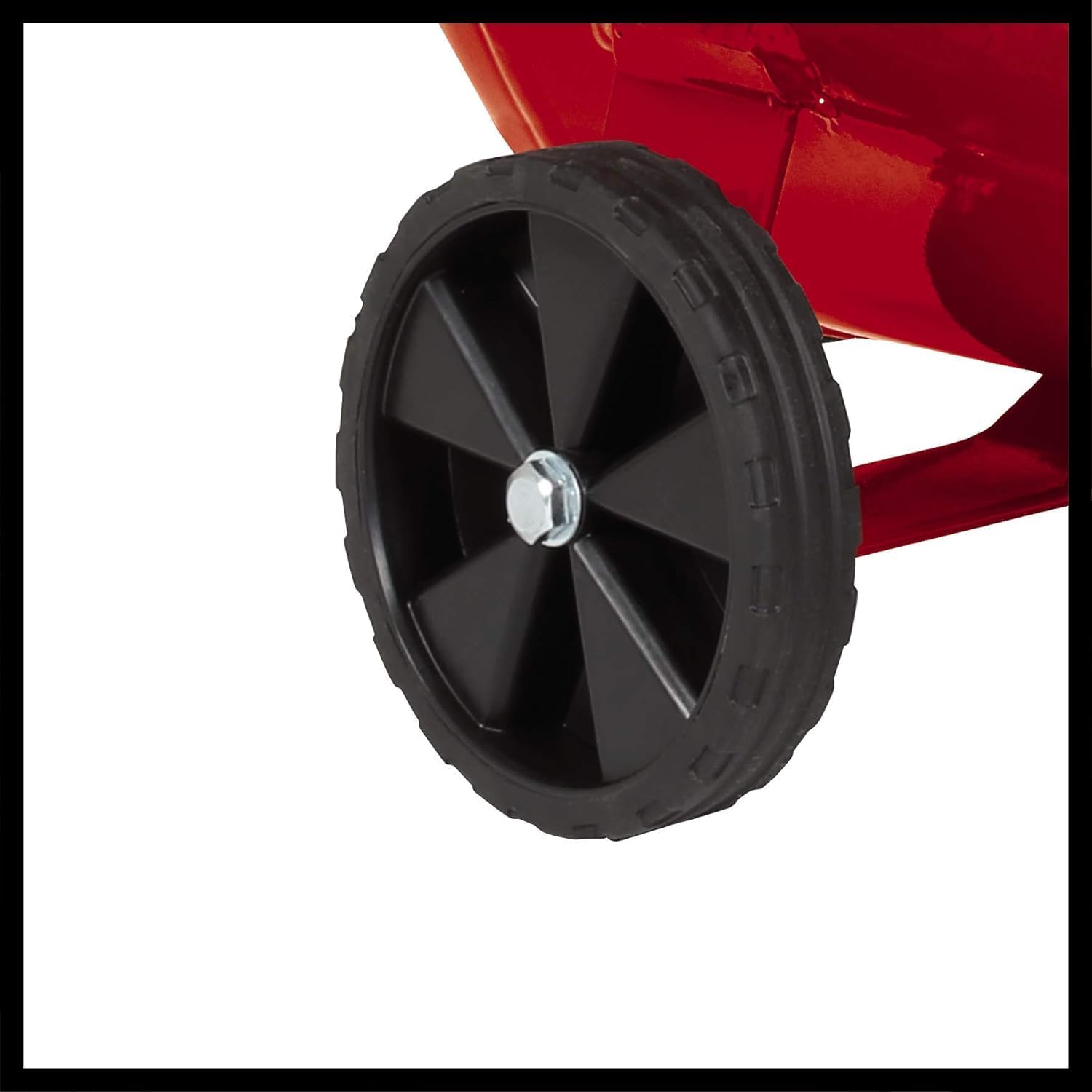

• Rubber wheels and carrying handle for an easy transport

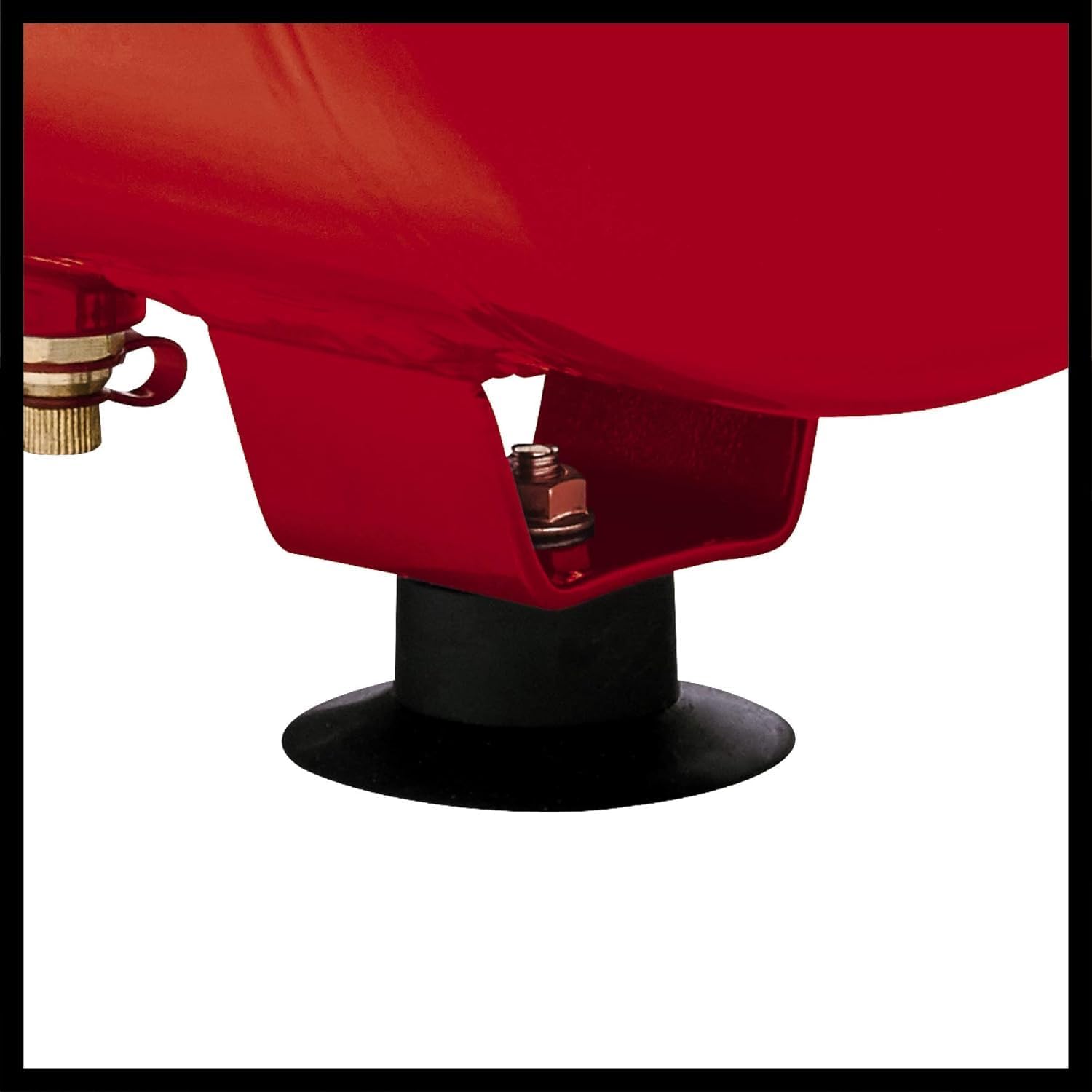

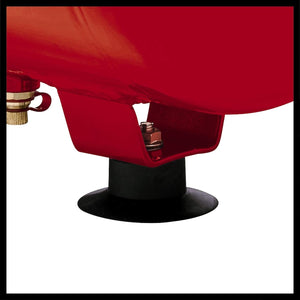

• Foot with rubber buffer for noise reduction
• 10 years warranty against rusting through of the tank
• Non-return valve, safety valve

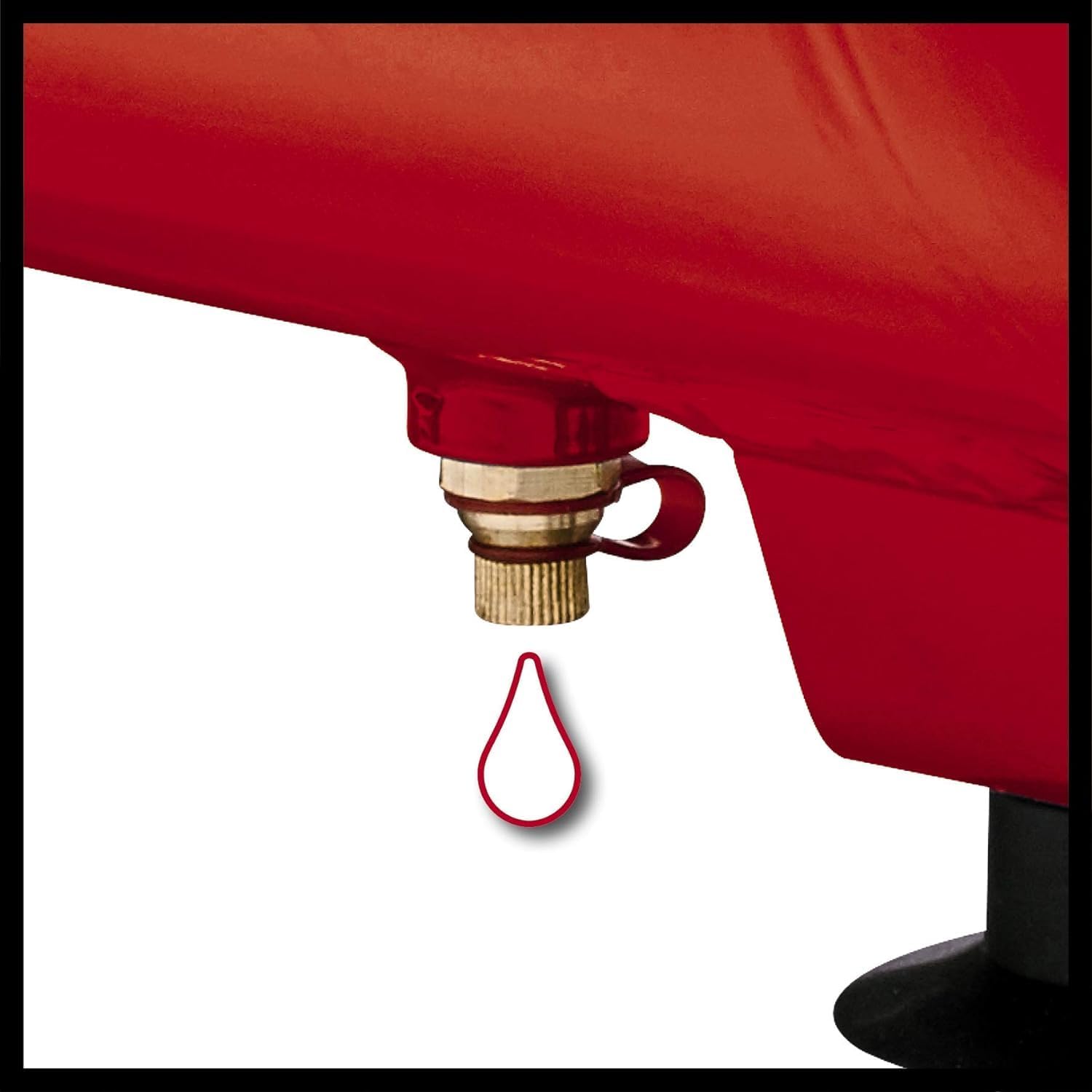

• The drain plug enables user-friendly maintenance

Technical details

• Continuous power S2: 15 min
• Max. operating pressure: 8 bar
• Motor speed: 2850 min^-1
• Motor type: Induction motor
• Number of cylinders: 1 pcs
• Output power 0 bar 110 l/min
• Output power 4 bar 75 l/min
• Output power 7 bar 55 l/min
• Product weight: 20.78 Kg
• Pump speed: 2850 min^-1
• Sound pressure level (volume): 75 dB (A)
• Suction power 165 l/min
• Tank volume:  24 l
