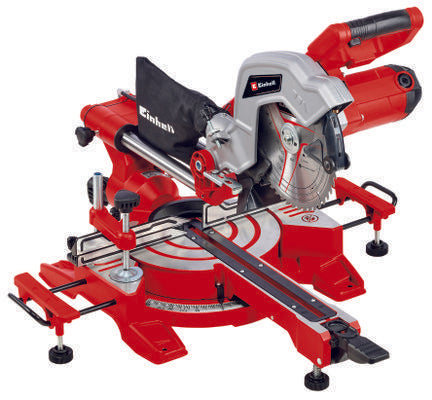

With the Einhell TC-SM 216 drag, crosscut and miter saw the ambitious DIY enthusiast is ideally equipped for cutting and crosscutting jobs in the home, workshed or garage. With a 1,600 W power rating the saw blade (Ø 216 external x ø 30 internal) has plenty of power to cut through material. This sturdy saw has a smooth draw function for wide workpieces. The turntable has a precise angle adjustment facility to make it easier to achieve good angular cuts.

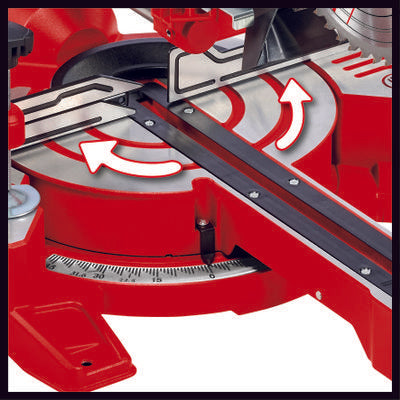

For the most common angles on do-it-yourself jobs, locking positions are provided on the turntable for adjusting the angle quickly and reliably. There are easy-to-read scales for the angles and widths.

Also, the saw head can be tilted to the left for miter cuts. The cutting width is up to 305 millimeters with a 90° setting and up to 210 millimeters with an angle of 45°.

The integrated cutting line laser is an enormous help when working. Supports for longer workpieces are provided on the left and right, and there is a practical clamping device for securing the workpieces. The high-grade carbide saw blade delivers perfect cuts.

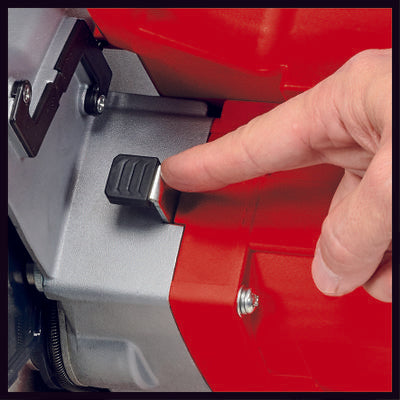

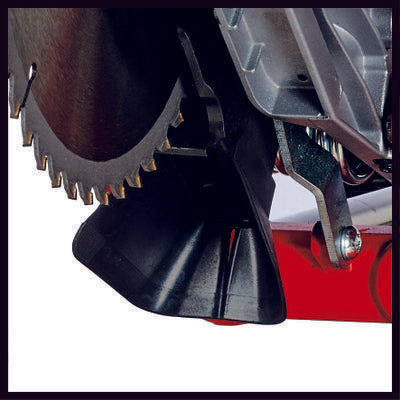

To make it easier to change the saw blade there is a spindle lock. For more effective removal of the sawdust there is a dust funnel behind the saw blade. The extractor connection which is provided has a diameter of 36 millimeters, or the supplied dust bag can be used as an alternative.
