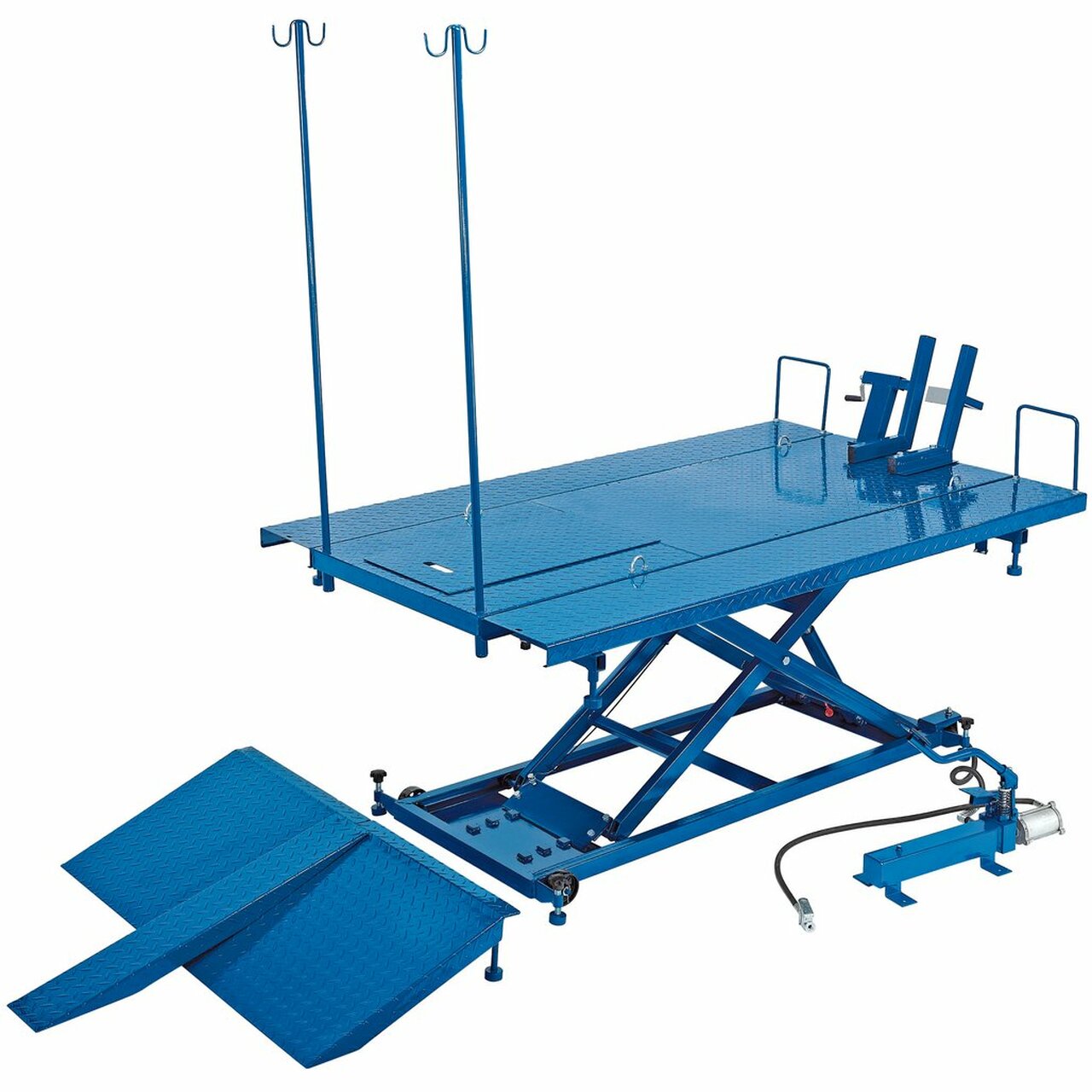

Draper 37190 680Kg Motorcycle Hydraulic Operation Lift Table

Large lift that supports motorcycles plus all terrain vehicles (ATV), Mini tractors and other similar - sized vehicles which can be accommodated by using the Supplied additional side platforms for extra width.

All steel construction with heavy duty foot operated dual hydraulic pump and pneumatic pump - up system with controller and ram assembly. Safety table lock device to prevent accidental lowering.

Removable front wheel clamp and rear panel to facilitate rear wheel changes (motorcycles only). Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use.

Features

• Hydraulic Powered Mechanism
• Maximum working height 885mm
• Capacity: 680kg (1500lbs)
• Lifting range: 200-885mm

Specifications

• Capacity: 680kg (1500lbs)
• Operating air pressure: 90psi (6.2bar)
• Air inlet: 1/4"BSP
• Lifting range: 200-885mm
• Working height stops : 550; 720; 840mm
• Maximum height: 885mm
• Closed height: 200mm
• Table as motorcycle lift (L x W): 1950 x 680mm
• Table as for ATV use (L x W): 1950 x 1220mm
• Motorcycle loading ramp (L x W): 850 x 150mm
• Rear wheel removal panel (L x W): 600 x 250mm
• Weight: 260kg
