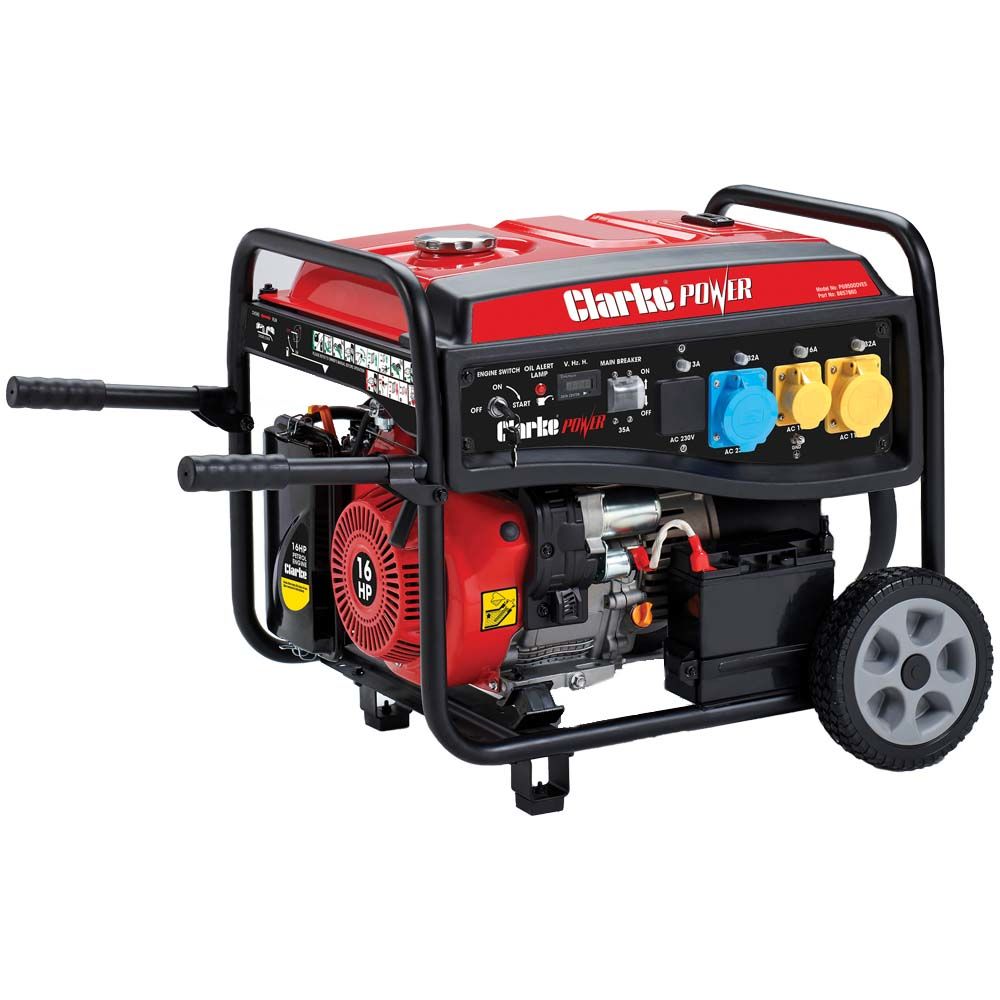

Clarke PG9500ADVES EURO5 8.5kW open frame dual voltage (230V/110V) petrol generator

The Euro 5 Compliant Clarke PG9500ADVES Dual Voltage Petrol Generator has 8.5kW of power making it ideal for trade and on-site use. With an ultra-powerful 4-stroke, 16HP engine this powerful machine provides a reliable source of power for builders, contractors, farmers, caterers, stall holders, local authorities and emergency services.

A large 25-litre tank provides 6½ hours running at ¾ load and fuel consumption of 3.3 l/h at ¾ power. The automatic voltage regulation (AVR) enables sensitive electrical equipment to be used such as laptops, televisions, tablet computers etc.
It has an electric start for convenience with recoil start as back-up, whilst being encased in a protective steel frame. The drop-down handles and a pair of large wheels aid manoeuvrability around site.

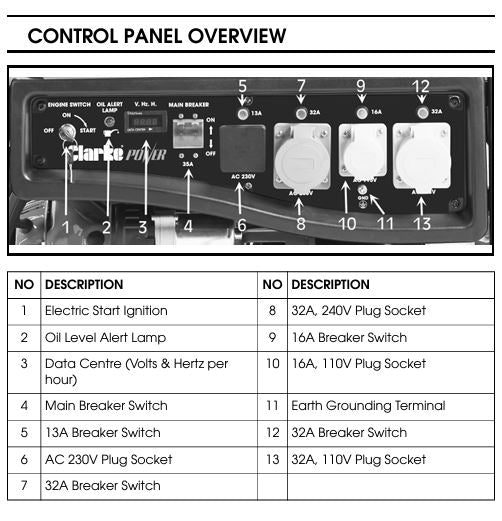

Other features include a volt meter, overload protection, low oil alert, low oil cut-out as well as 1x 230V (13A), 1x 230V (32A), 1x 110V (16A) and 1x 110V (32A) Sockets

Please note: The PG9500ADVES requires SAE 10W/30 or 5W/30 Oil (Depending on ambient temperature)

Euro 5 compliant engine driven ranges meet EU 2016/1628 regulations. This means improved economy and efficiency whilst lowering emissions.

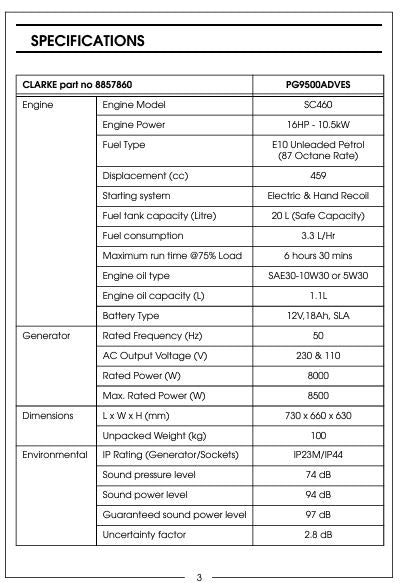

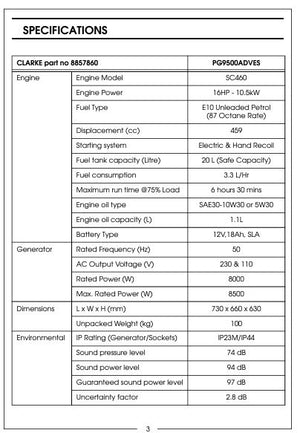

Dual voltage petrol generator specifications:

• Euro 5 Compliant - Improved economy & efficiency whilst lowering emissions
• Ultra powerful 16HP Engine
• Low oil and overload shutdown
• Fuel tank capacity: 25-litres
• Electric Start and Recoil
• Running hours @ ¾ load: 6h 30 mins
• Fuel consumption @ ¾ load: 3.3L/hr
• Max Output: 8.5kW
• Continuous Output: 8kW
• Fuel Tank Capacity: 25 Litres
• Outputs: 1x 230V (13A), 1x 230V (32A), 1x 110V (16A), 1x 110V (32A)
• Engine type:4 Stroke
• Starting System: Electric & Recoil Start
• Running Time @ 3/4 Load: 6h 30 mins
• Noise (LWA): 97dB(A)
• Dimensions (WxDxH): 730 x 660 x 630mm
• Weight: 100kg

Clarke PG9500ADVES petrol generator maual
